Laboratory Glass Separatory Funnel Manufacturer,Supplier and Exporter in India
Product Code : EL-GW-10815

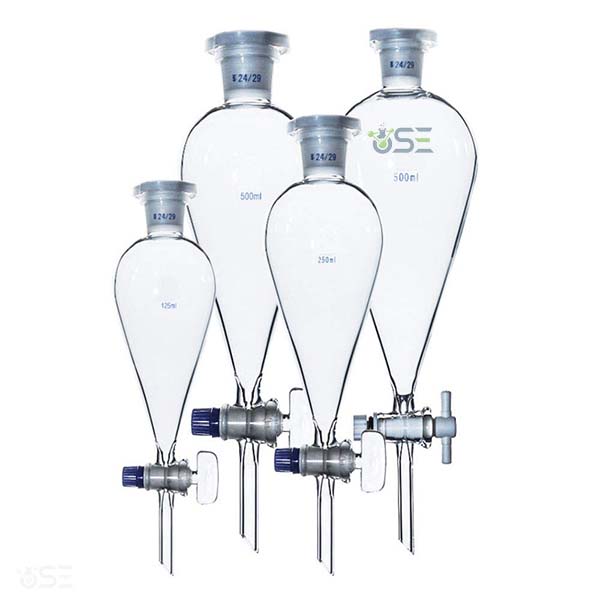

Quick Answer: The Laboratory Glass Separatory Funnel is a pear-shaped 3.3 borosilicate glass funnel with graduations, a top stopper and a stopcock, made in 60, 125, 250, 500 and 1000 ml capacities.
Last updated: October 2026
Key Features
- Pear-shaped body with graduations
- Made of 3.3 borosilicate glass
- Fitted with a top stopper and a stopcock
- Corrosion-resistant, transparent glass of uniform thickness
- Capacities from 60 ml to 1000 ml
Technical Specifications
| Specification | Value |
|---|---|
| Material | 3.3 borosilicate glass |
| 60 ml | Body O.D. 48 mm, total length 205 mm, stem dia. 7 mm, neck I.D. 14 mm |
| 125 ml | Body O.D. 67 mm, total length 260 mm, stem dia. 7 mm, neck I.D. 19 mm |
| 250 ml | Body O.D. 74 mm, total length 310 mm, stem dia. 8 mm, neck I.D. 19 mm |
| 500 ml | Body O.D. 90 mm, total length 355 mm, stem dia. 9 mm, neck I.D. 24 mm |
| 1000 ml | Body O.D. 120 mm, total length 430 mm, stem dia. 10 mm, neck I.D. 29 mm |
| Quantity per case | 60 / 48 / 32 / 24 / 12 (60 ml to 1000 ml) |
About This Product
This pear-shaped separatory funnel is made from transparent 3.3 borosilicate glass of even thickness that resists corrosion, so the contents stay visible. The graduations on the body show the volume held, and the stopper at the top and the stopcock below close the funnel. Body diameter, length and neck size all increase with capacity.
Frequently Asked Questions
Q1. What sizes are available?
60, 125, 250, 500 and 1000 ml. Total length runs from 205 mm for the 60 ml funnel to 430 mm for the 1000 ml funnel.
Q2. What is the neck size of each funnel?
Neck inner diameter is 14 mm on the 60 ml size, 19 mm on the 125 ml and 250 ml sizes, 24 mm on the 500 ml size and 29 mm on the 1000 ml size.
Related: Glass Ware range, White Glass Reagent Bottle, Brown Glass Reagent Bottle.
For a quotation on the Laboratory Glass Separatory Funnel, contact Scientific Equipments.
