Product Code : EL-THB-10759
Quick Answer: The Bimetallic Thermometer is a pointer dial thermometer, 128 mm in diameter and 34 mm thick, that reads -30 to 50 °C. It can hang on a wall, stand on a metal support or be fitted into a panel.
Last updated: October 2026
Key Features
Pointer thermometer for wall hanging or a metal support platform
101 mm diameter back can be fitted into panels such as wood, steel or stone
Aluminium alloy outer ring oxidised in gold, silver or black
Plastic bottom shell and acrylic plastic lens
Technical Specifications
Specification
Value
Measurement range
-30 to 50 °C
Accuracy
±2 °C
Size
128 mm diameter x 34 mm thick
Back diameter
101 mm
Outer ring
Aluminium alloy, gold/silver/black
About This Product

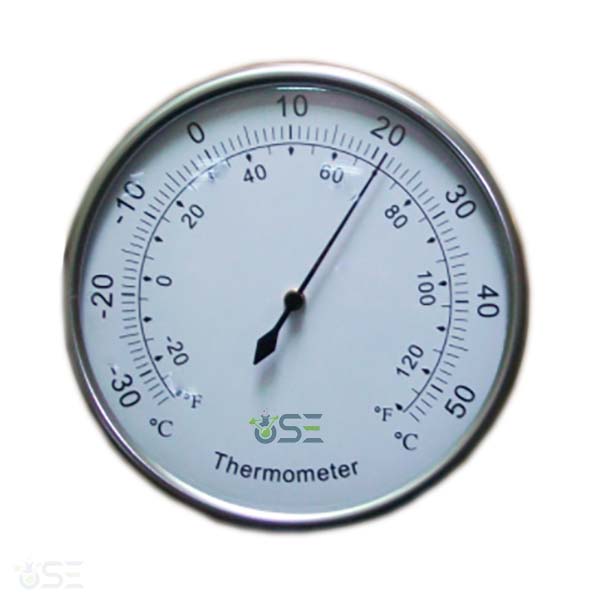

This bimetallic dial thermometer shows the temperature of its surroundings with a pointer. It can be hung on a wall, placed on a metal support platform, or set into a wood, steel or stone panel using its 101 mm diameter back.
Frequently Asked Questions
Q1. Can the thermometer be fitted into a panel? Yes. The back is 101 mm in diameter and can be used in other panels such as wood, steel or stone.
Q2. What finishes are available for the outer ring? The aluminium alloy outer ring is oxidised in gold, silver or black.
