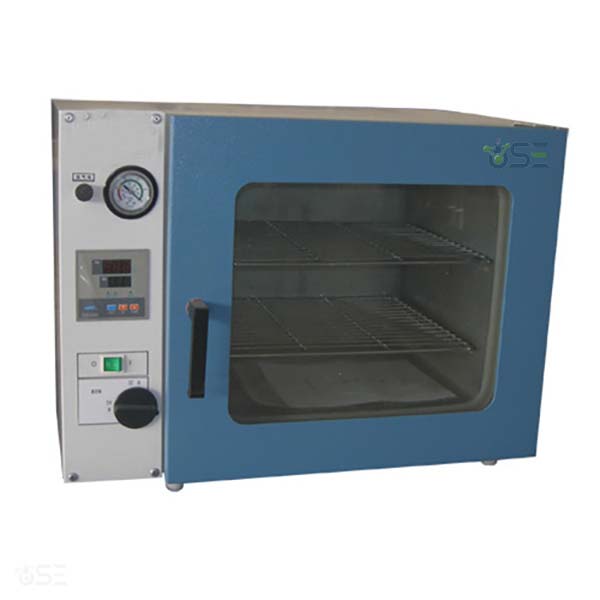

Laboratory Vacuum Dry Oven A2 Manufacturer,Supplier and Exporter in India
Product Code : EL-DO-11179
Quick Answer: The Laboratory Vacuum Dry Oven A2 is a microprocessor-controlled oven for drying, baking, dewaxing, sterilisation and heat treatment under vacuum, reaching a vacuum degree below 133 Pa, in four sizes up to 250°C.
Last updated: October 2026
Key Features
Microprocessor control with PID self-tuning
Digital display of set and actual temperature, with running timer (0-999 min)
Over-temperature alarm and automatic alarm at the end of operation
Glass window door
Vacuum degree below 133 Pa; temperature fluctuation ±1%
300x300x275 / 415x375x345 / 450x450x450 / 560x640x600 mm
Dimensions
570x460x460 / 710x540x550 / 610x670x1430 / 810x720x1590 mm
Power
1000 W / 1400 W / 1600 W / 2160 W
Weight
39 kg / 56 kg / 107 kg / 140 kg
Temperature fluctuation
±1%
Vacuum degree
Below 133 Pa
Timer
0-999 min
Voltage
220 V 50 Hz
About This Product
The oven is used for drying, baking, dewaxing, sterilisation and heat treatment under vacuum conditions. It is built in four sizes, from a 300 x 300 x 275 mm working chamber at 1000 W to a 560 x 640 x 600 mm chamber at 2160 W.
Frequently Asked Questions
Q1. What vacuum level does it reach? A vacuum degree below 133 Pa.
Q2. What is the timer range? 0 to 999 minutes, shown on the digital running timer.
