Probe PH Composite Electrode Manufacturer,Supplier and Exporter in India
Product Code : EL-PM-11084

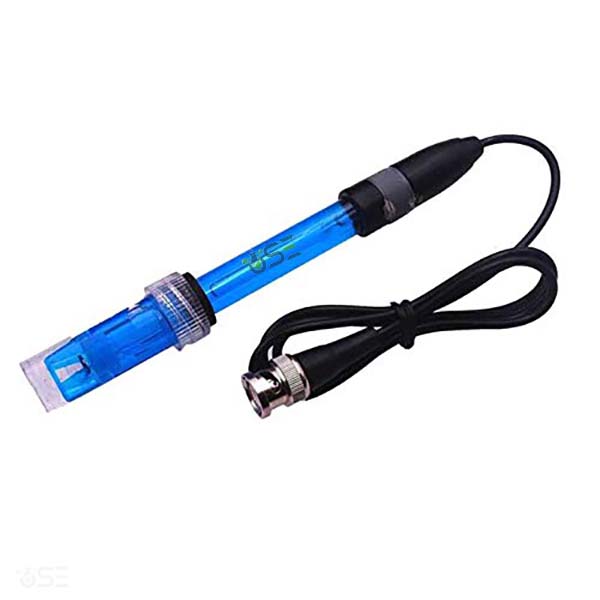

Quick Answer: The Probe PH Composite Electrode is a pen-type pH electrode combining a pH glass electrode and a reference electrode, with a 90 cm cable and BNC (Q9-type) plug for a desktop pH meter. It measures 0–14 pH at 5–60°C.
Last updated: October 2026
Key Features
Composite electrode: pH glass electrode plus reference electrode
Measuring range 0–14 pH; temperature range 5–60°C
90 cm cable with standard BNC (Q9-type) plug
PC + fibre body; fibre salt bridge; saturated KCl filling
Size 165 x 21 mm; weight 95 g
Technical Specifications
Specification
Value
Material
PC + fibre
Measuring range
0–14 pH
Temperature range
5–60°C
Salt bridge material
Fibre
Filling liquid
Saturated KCl
Cable length
90 cm / 35.43 in
Connector
Standard BNC (Q9-type)
Size
165 x 21 mm
Weight
95 g
About This Product
This electrode is the key element of a pH meter for measuring the pH of aqueous solutions, being the part in contact with the measured solution. It is used for pH detection in the chemical and pharmaceutical industries and in scientific research.
Frequently Asked Questions
Q1. What connector does it use? A standard BNC (Q9-type) plug on a 90 cm cable.
Q2. What is the filling liquid? Saturated KCl, with a fibre salt bridge.
