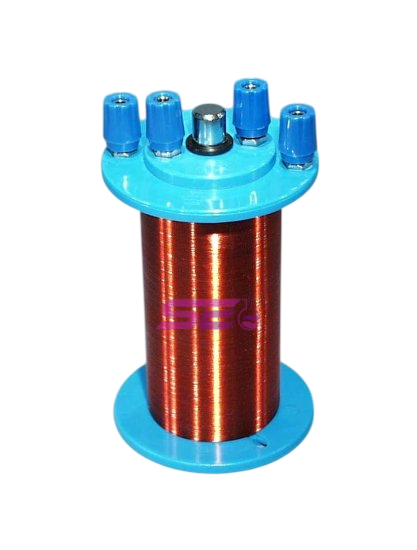

Mutual Induction Coils Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11917

The Mutual Induction Coils by Scientifc Equipment are educational physics laboratory apparatus designed to demonstrate electromagnetic induction, mutual induction, induced current, changing magnetic flux, transformer action, primary and secondary coils, Faraday’s law, Lenz’s law, and AC signal transfer. They are suitable for school physics laboratories, college science labs, STEM classrooms, electromagnetism lessons, teacher demonstrations, and supervised student practical experiments.

This apparatus helps students understand how a changing current in one coil can induce an electromotive force in another nearby coil. It provides a practical and visual way to study the relationship between current, magnetic field, coil turns, magnetic core, and induced voltage.

Product Description

Mutual induction occurs when the changing magnetic field produced by one coil links with another coil and induces a voltage in it. The Mutual Induction Coils are commonly used to demonstrate transformer principles and the transfer of electrical energy through a changing magnetic field without direct electrical contact between the coils.

The Scientifc Equipment Mutual Induction Coils may include primary and secondary coils, removable iron core, coil support, terminals, connecting leads, base, activity guide, and compatible accessories depending on product configuration. They are designed for supervised educational and laboratory demonstration use only.

Key Features

• Educational coils for demonstrating mutual induction and electromagnetic induction.
• Helps explain primary coil, secondary coil, changing magnetic flux, and induced EMF.
• Useful for studying transformer action and coil coupling.
• May include removable iron core and separate coil terminals depending on configuration.
• Can be used with galvanometer, multimeter, AC supply, signal generator, or low-voltage power supply.
• Suitable for physics labs, STEM classrooms, and electromagnetism demonstrations.
• Supports qualitative observation and quantitative voltage/current measurement.
• Encourages prediction, measurement, comparison, calculation, and scientific reasoning.
• Designed for supervised educational laboratory use only.

Product Specifications

How to Use

1. Place the Mutual Induction Coils on a stable, clean, dry, and level laboratory bench.
2. Inspect the coils, terminals, connecting leads, core, base, and measuring instruments before use.
3. Connect the primary coil to a suitable low-voltage educational power supply as instructed by the teacher.
4. Connect the secondary coil to a galvanometer, multimeter, oscilloscope, or suitable measuring device.
5. Keep the power supply switched off while making or changing connections.
6. Insert the soft iron core if the activity requires stronger magnetic coupling.
7. Switch on the supply briefly and observe the induced voltage or galvanometer deflection in the secondary coil.
8. Switch the current on and off to demonstrate that changing current is required for induction.
9. Repeat the activity with and without the iron core to compare the effect on induced output.
10. If an AC supply is used, observe continuous induction in the secondary coil.
11. Record readings and compare results for different coil arrangements or input conditions.
12. Switch off the power supply before removing the core, changing wires, or storing the apparatus.

Safety and Handling Instructions

• Use only under teacher, laboratory instructor, or trained adult supervision.
• Use only the recommended low-voltage educational power supply; do not connect directly to mains electricity.
• Switch off the power supply before connecting, disconnecting, or changing circuit leads.
• Do not touch terminals with wet hands.
• Keep coils, leads, and power supplies away from water, chemical spills, wet benches, and damp storage areas.
• Do not exceed the recommended voltage or current rating of the coils.
• Do not operate the coils continuously for long periods if they become warm.
• Use insulated connecting leads and avoid short circuits.
• Keep magnets and iron cores away from pacemakers, medical devices, magnetic cards, watches, and sensitive electronics.
• Do not use damaged winding, exposed wire, loose terminals, cracked coil formers, or faulty power supplies.
• Allow coils to cool if they become warm during repeated experiments.
• Store the coils and core in a clean, dry, and protective place after use.

Educational Applications

• Demonstrating mutual induction between two coils.
• Studying Faraday’s law of electromagnetic induction.
• Explaining Lenz’s law and direction of induced current.
• Showing transformer action using primary and secondary coils.
• Comparing induced output with and without an iron core.
• Investigating magnetic flux linkage and coil coupling.
• Supporting electromagnetism, electricity, electronics, and STEM lessons.
• Encouraging observation, measurement, graphing, calculation, comparison, and scientific reasoning.

Why Choose Scientifc Equipment Mutual Induction Coils?

The Scientifc Equipment Mutual Induction Coils provide a practical and reliable way to teach electromagnetic induction and transformer principles. By allowing students to observe induced voltage in a secondary coil when current changes in a primary coil, the apparatus makes mutual induction, magnetic flux, and coil coupling easier to understand through supervised hands-on learning.

FAQ

1. What are Mutual Induction Coils used for?

They are used to demonstrate mutual induction, electromagnetic induction, induced EMF, magnetic flux linkage, transformer action, Faraday’s law, and Lenz’s law.

2. Are these coils suitable for school physics laboratories?

Yes, they are suitable for school physics labs, college science labs, STEM classrooms, electromagnetism lessons, and supervised student experiments.

3. What is mutual induction?

Mutual induction is the production of voltage in one coil due to a changing current and changing magnetic field in a nearby coil.

4. Do the coils require electricity?

Yes, the primary coil requires a suitable low-voltage educational power supply or signal source depending on the experiment setup.

5. Can the coils be connected directly to mains electricity?

No, the coils must not be connected directly to mains electricity. Use only a recommended low-voltage educational power source.

6. What is the purpose of the iron core?

The iron core improves magnetic flux linkage between the primary and secondary coils, which can increase the induced output in the secondary coil.

7. Can students measure the induced voltage?

Yes, students can use a galvanometer, multimeter, oscilloscope, or data logger to observe or measure induced voltage depending on the setup.

8. How should Mutual Induction Coils be stored?

Store the coils, iron core, connecting leads, and accessories in a clean, dry, and protective place away from moisture, dust, heat, chemicals, impact, and rough handling.
