Shaking Incubator Manufacturer,Supplier and Exporter in India
Product Code : EL-I-11177

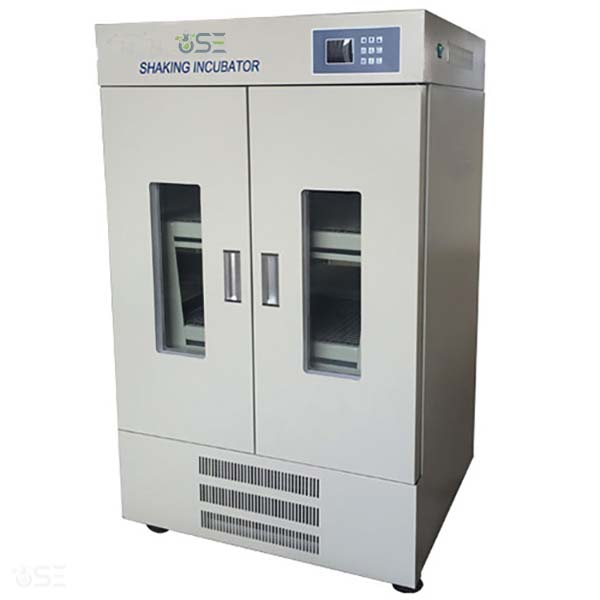

Quick Answer: The Shaking Incubator is a microcomputer temperature-controlled incubator with a three-dimensional self-balancing eccentric drive, covering 4–60°C and 50–300 rpm. Its standard configuration is 500 ml x 80 on two 960x560 mm trays.
Last updated: October 2026
Key Features
- Three-dimensional self-balancing eccentric drive mechanism
- Brushless motor speed control
- Microcomputer temperature control with black-and-white LCD
- Alarms for module fault, motor stall, Hall sensor error, bus undervoltage or overvoltage and communication fault
- Oxygen replenishment function; optional RS485 communication
Technical Specifications
| Specification | Value |
|---|---|
| Temperature range | 4–60°C |
| Temperature fluctuation | ±0.5°C |
| Oscillation frequency | 50–300 rpm |
| Frequency accuracy | ±1 rpm |
| Maximum capacity | 100 ml x 160, 250 ml x 90, 500 ml x 80 or 1000 ml x 36 |
| Standard configuration | 500 ml x 80 |
| Trays | 2 pcs, 960x560 mm |
| Heating power | 350 W |
| Cooling power | 570 W |
| Timer | 0–9999 min |
| Power | 220 V 50 Hz |
| Size (mm) | 1175x855x1620 |
| Weight | 200 kg |
About This Product
This shaking incubator combines microcomputer temperature control with an eccentric shaking drive in one unit. With 350 W heating and 570 W cooling power it covers 4–60°C, while the oscillation frequency runs from 50 to 300 rpm.
Frequently Asked Questions
Q1. What is the maximum capacity?
100 ml x 160, 250 ml x 90, 500 ml x 80 or 1000 ml x 36, on 2 trays of 960x560 mm. The standard configuration is 500 ml x 80.
Q2. What are the temperature and speed ranges?
Temperature is 4–60°C with ±0.5°C fluctuation; oscillation frequency is 50–300 rpm with ±1 rpm accuracy.
Related: Incubator range, Laboratory Incubator, CO2 Incubator.
For a quotation on the Shaking Incubator, contact Scientific Equipments.
