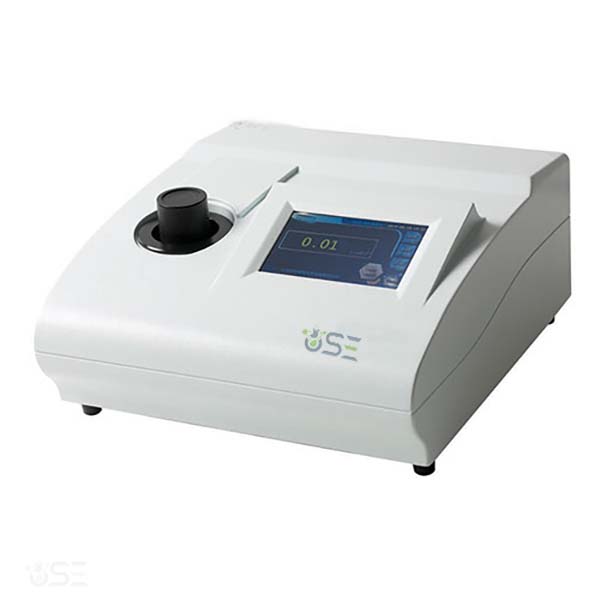

Ratio Turbidimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-R-11101
Quick Answer: The Ratio Turbidimeter measures the light scatter and decay caused by insoluble particles suspended in water or transparent liquids, over 0.00-200 NTU with automatic range switchover. Readings appear on an LCD touch screen.
Last updated: October 2026
Key Features
Measurement range 0.00-50.0 and 50.1-200 NTU with automatic range switchover
Allowable error of indication ≤±8%
Tungsten halogen lamp light source, 6V 10W
Silicon photocell receiving element
LCD touch screen display
Sample bottle Φ 25 mm x 95 mm, sample volume 20-30 ml
Technical Specifications
Specification
Value
Measurement range
0.00-50.0; 50.1-200 NTU (automatic range switchover)
Allowable error of indication
≤±8%
Light source
Tungsten halogen lamp 6V, 10W
Receiving element
Silicon photocell
Zero drift
≤±3% FS
Stability of indication
≤±1% FS
Repeatability
≤2%
Sample bottle
Φ 25 mm x 95 mm
Sample volume
20-30 ml
Overall dimensions
460 x 430 x 250 mm
Gross weight
9 kg
About This Product
This ratio turbidimeter measures how insoluble particles suspended in water or other transparent liquids scatter and weaken light, giving a quantitative analysis of the particle content. The instrument switches between its measuring ranges automatically, up to 200 NTU, and shows the reading on an LCD touch screen.
Frequently Asked Questions
Q1. What range does the Ratio Turbidimeter cover? It measures from 0.00 to 200 NTU in ranges of 0.00-50.0 and 50.1-200 NTU, switching between them automatically.
Q2. What sample bottle does it use? The sample bottle is Φ 25 mm x 95 mm and takes a sample volume of 20-30 ml.
