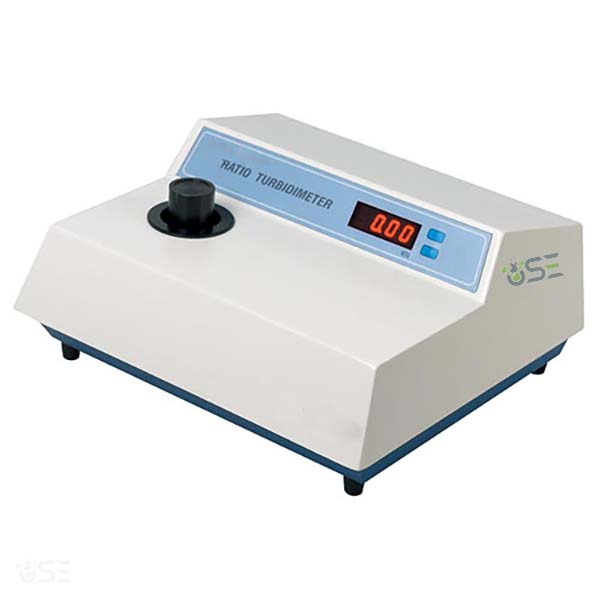

Ratio Turbidimeter A1 Manufacturer,Supplier and Exporter in India
Product Code : EL-R-11100
Quick Answer: The Ratio Turbidimeter A1 measures the light scatter and decay caused by insoluble particles suspended in water or transparent liquids, over 0.00-2000 NTU with automatic range switchover. Readings appear on an LCD touch screen.
Last updated: October 2026
Key Features
- Measurement range 0.00-50.0, 50.1-200 and 201-2000 NTU with automatic range switchover
- Allowable error ≤±8% (0-200 NTU) and ≤±6% (201-2000 NTU)
- Tungsten halogen lamp light source, 6V 10W
- Silicon photocell receiving element
- LCD touch screen display
- Sample bottle Φ 25 mm x 95 mm, sample volume 20-30 ml
Technical Specifications
| Specification | Value |
|---|---|
| Measurement range | 0.00-50.0; 50.1-200; 201-2000 NTU (automatic range switchover) |
| Allowable error of indication | 0-200 NTU: ≤±8%; 201-2000 NTU: ≤±6% |
| Light source | Tungsten halogen lamp 6V, 10W |
| Receiving element | Silicon photocell |
| Zero drift | ≤±3% FS |
| Stability of indication | ≤±1% FS |
| Repeatability | ≤2% |
| Sample bottle | Φ 25 mm x 95 mm |
| Sample volume | 20-30 ml |
| Overall dimensions | 460 x 430 x 250 mm |
| Gross weight | 9 kg |
About This Product
This ratio turbidimeter measures how insoluble particles suspended in water or other transparent liquids scatter and weaken light, giving a quantitative analysis of the particle content. The instrument switches between its measuring ranges automatically, up to 2000 NTU, and shows the reading on an LCD touch screen.
Frequently Asked Questions
Q1. What range does the Ratio Turbidimeter A1 cover?
It measures from 0.00 to 2000 NTU in ranges of 0.00-50.0, 50.1-200 and 201-2000 NTU, switching between them automatically.
Q2. What sample bottle does it use?
The sample bottle is Φ 25 mm x 95 mm and takes a sample volume of 20-30 ml.
