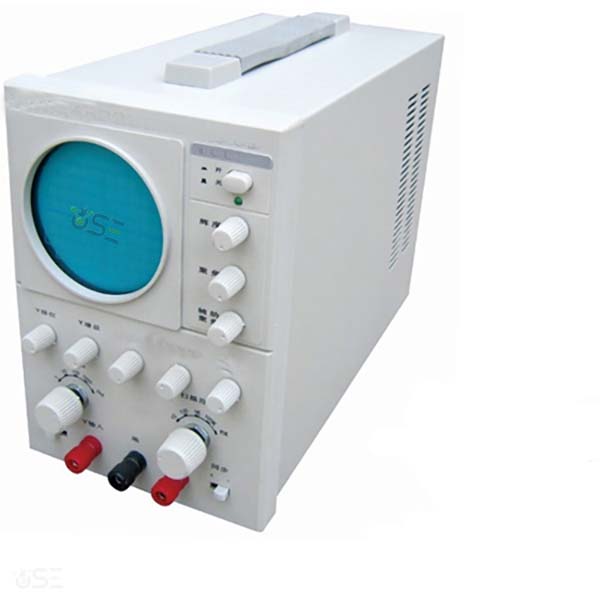

Students Oscilloscope Manufacturer,Supplier and Exporter in India
Product Code : EL-OLE-11229
Quick Answer: The Students Oscilloscope is an oscilloscope for student use with a deflection factor of 50 mVp-p per grid, attenuation ratios of 1,10,100,1000 and a scan frequency of 10 Hz to 100 kHz. It weighs 3 kg.
Last updated: October 2026
Key Features
Deflection factor 50 mVp-p/grid, error ±10%
Attenuation ratio 1,10,100,1000, error ±10%
Scan frequency 10 Hz to 100 kHz
Internal synchronisation
Input voltage 400 V (DC + AC peak)
Technical Specifications
Specification
Value
Deflection factor
50 mVp-p/grid, error ±10%
Input capacitance
1M // 40 pF
Attenuation ratio
1,10,100,1000, error ±10%
Input voltage
400 V (DC + AC pk)
Scan frequency
10 Hz–100 kHz
Synchronisation
Internal
Working environment
0 to +40°C; relative humidity ≤90% (40°C)
Size
300 x 130 x 190 (height x width x depth)
Weight
3 kg
About This Product
This oscilloscope is made for students. It uses internal synchronisation and works in temperatures from 0 to 40°C with relative humidity up to 90%.
Frequently Asked Questions
Q1. What attenuation ratios does it have? Attenuation ratios of 1,10,100,1000, each with an error of ±10%.
Q2. What scan frequency range does it cover? 10 Hz to 100 kHz.
