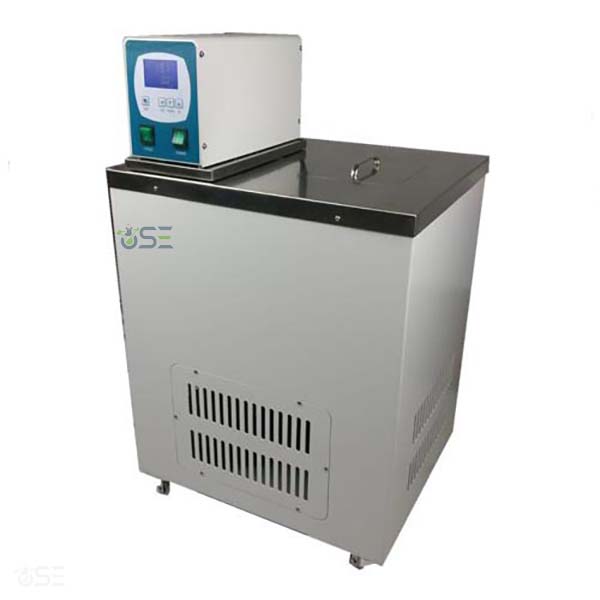

Low Temperature Cycle Water Bath Manufacturer,Supplier and Exporter in India
Product Code : EL-TB-11157
Quick Answer: The Low Temperature Cycle Water Bath is a microcomputer-controlled circulating bath with a temperature range of -20 to 99 °C, ±0.1 °C accuracy and inside and outside pump circulation at 8-10 L/min.
Last updated: October 2026
Key Features
- Temperature range -20 to 99 °C, accuracy ±0.1 °C
- LCD display of set and measured temperature, 0.1 °C resolution
- Inside and outside pump circulation, pump flow 8-10 L/min
- Microcomputer control with touch panel, parameter memory and temperature correction
- One-time moulded tank, easy to clean
- Power-off, low-water, over-current, runaway and empty-running protection with alarms
Technical Specifications
| Specification | Value |
|---|---|
| Temperature range | -20 to 99 °C |
| Temperature accuracy | ±0.1 °C |
| Pump flow | 8-10 L/min |
| Open size | 160 x 160 mm |
| Voltage | 110V 60Hz / 220V 50Hz |
| Inner size (by model) | 400 x 320 x 150 mm / 350 x 270 x 150 mm |
| Power (by model) | 1500W / 1000W |
| Dimensions (by model) | 500 x 430 x 900 mm / 450 x 380 x 820 mm |
| Weight (by model) | 45 kg / 37 kg |
About This Product
This low-temperature bath has a pump that circulates liquid both inside and outside the bath; the inside circulation keeps the temperature uniform, and the pump lets the unit be used as a heating or constant-temperature machine. It is used in electronic inspection, chemical reactions and the semiconductor industry. Set and measured temperatures appear on an LCD display, with touch panel control and parameter memory.
Frequently Asked Questions
Q1. What temperature range does it cover?
From -20 to 99 °C, with ±0.1 °C accuracy and 0.1 °C display resolution.
Q2. Does it have external circulation?
Yes. It has inside and outside pump circulation, with a pump flow of 8-10 L/min.
Q3. What protection functions are included?
Power-off protection, low water level protection and alarm, temperature runaway protection, over-current protection, high and low temperature alarms and empty-running protection.
Related: Thermostatic Bath range, Laboratory Circulating Water Bath, Laboratory Thermostatic Water Bath.
For a quotation on the Low Temperature Cycle Water Bath, contact Scientific Equipments.
