Temperature oscillator Manufacturer,Supplier and Exporter in India
Product Code : EL-UC-11164

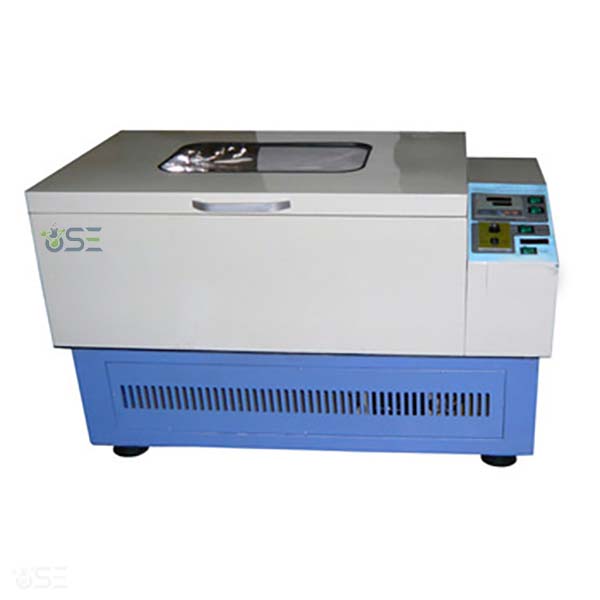

Quick Answer: The Temperature oscillator is a large horizontal shaking incubator with heating and a refrigeration system, a temperature range of 5-50 °C and microprocessor PID control. Flask clamps take a variety of flasks, and a glass window allows checking during operation.
Last updated: October 2026
Key Features
- Temperature range 5-50 °C, fluctuation ±0.5 °C
- Heating and refrigeration, microprocessor PID control
- Stepless speed control, shaking from start-up to 280 rpm
- Stainless steel chamber with corrosion resistance
- Flask clamps for a variety of flasks; glass window
- Over-temperature alarm; timer 0-9999 min
Technical Specifications
| Specification | Value |
|---|---|
| Temperature range | 5-50 °C |
| Temperature fluctuation | ±0.5 °C |
| Shaking frequency | Start-up to 280 rpm |
| Timer | 0-9999 min |
| Voltage | 220V 50Hz |
| Capacity (by model) | 30L, 250ml x 12 / 210L, 500ml x 28 |
| Platform (by model) | 420 x 320 mm / 840 x 490 mm |
| Amplitude (by model) | 20 mm / 26 mm |
| Heating power (by model) | 300W / 400W |
| Compressor power (by model) | 200W / 350W |
| Dimensions (by model) | 730 x 550 x 650 mm / 1100 x 700 x 870 mm |
| Weight (by model) | 60 kg / 95 kg |
About This Product
This temperature-controlled oscillator shakes flasks with a rotary motion inside a stainless steel chamber, with both heating and a refrigeration system under microprocessor PID control. Set and actual temperatures are shown digitally, and the glass window allows the work to be checked while it runs. It is used in plant science, biology, microbiology, genetics, virology, environmental protection and education.
Frequently Asked Questions
Q1. How many flasks does it hold?
The smaller model holds 250ml x 12 and the larger 500ml x 28, with flask clamps available for a variety of flasks.
Q2. What temperature range does it cover?
From 5 to 50 °C, with a fluctuation of ±0.5 °C.
Related: Shaker, Oscillator, Mixer range, Laboratory Microplate Oscillator, Laboratory Syphilis Oscillator.
For a quotation on the Temperature oscillator, contact Scientific Equipments.
