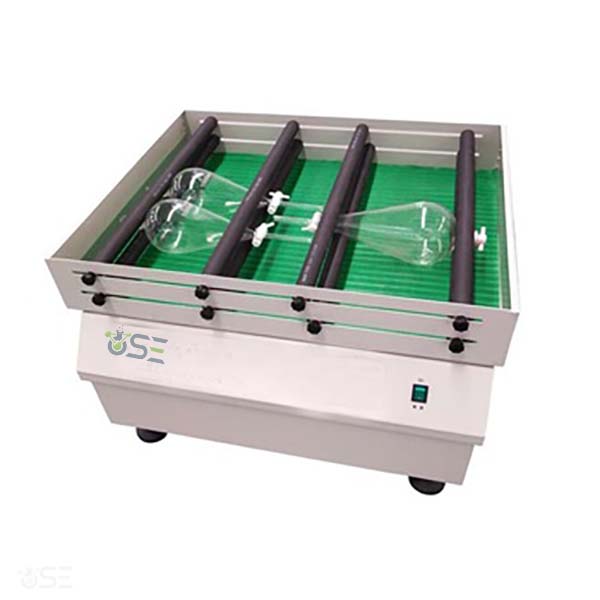

Horizontal Separatory Funnel Oscillator Manufacturer,Supplier and Exporter in India
Product Code : EL-SOM-11209
Quick Answer: The Horizontal Separatory Funnel Oscillator is a speed-regulating shaker that holds up to 6 separatory funnels of 500 ml, with a 40 mm oscillation amplitude. Stepless speed regulation takes the frequency up to 280 times per minute.
Last updated: October 2026
Key Features
- Maximum capacity 500 ml x 6 separatory funnels
- Special fixture clamps a variety of test bottles so they shake evenly under the same conditions
- Stepless, stable speed regulation; frequency up to 280 times/min
- Oscillation amplitude 40 mm
- Timer 0-9999 minutes or normally open, with liquid crystal display
- Continuous working time 24 hours
Technical Specifications
| Specification | Value |
|---|---|
| Oscillation frequency | Start to 280 times/min |
| Oscillation amplitude | 40 mm |
| Maximum capacity | 500 ml x 6 (separating funnel) |
| Timing | 0-9999 minutes / normally open (liquid crystal display) |
| Ambient temperature | -10 to 50 °C |
| Dimensions | 700 x 500 x 280 mm |
| Power consumption | 100W |
| Continuous working hours | 24 hours |
| Power supply | 220V, 50Hz |
About This Product
This horizontal oscillator shakes separatory funnels and other test bottles, which are clamped in a special fixture on the work platform so that all of them are shaken evenly under the same conditions. It is used in research, teaching and production work in fields such as plants, biological products, genetics and environmental protection, and is particularly suited to preparing biological samples for comparative tests.
Frequently Asked Questions
Q1. How many separatory funnels does it hold?
Up to 6 separatory funnels of 500 ml.
Q2. How long can it run?
It can work continuously for 24 hours. The timer is set from 0-9999 minutes or left normally open.
Related: Shaker, Oscillator, Mixer range, Test Tube Oscillator, Thermostatic Microtiter Plate Oscillator.
For a quotation on the Horizontal Separatory Funnel Oscillator, contact Scientific Equipments.
