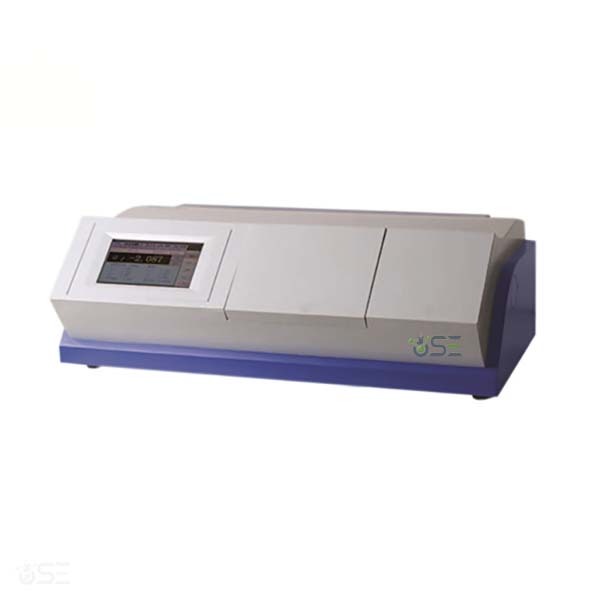

Lab Automatic Polarimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11118
Quick Answer: The Lab Automatic Polarimeter measures optical rotation, specific rotation, sugar degree and concentration over ±89.999° and ±257°Z, with selectable wavelengths and Peltier temperature control from 15 to 30°C.
Last updated: October 2026
Key Features
Measuring range ±89.999° (optical rotation), ±257°Z (sugar)
2 to 6 wavelengths can be selected
Peltier temperature control, 15-30°C, accuracy ±0.5°C
7 inch colour touch screen; data storage for 1500 sets
20W halogen tungsten lamp; no prewarming needed
Automatic 6-fold repeat measurement with average and mean square root
Technical Specifications
Specification
Value
Accuracy
±0.01 (-15° to +15°); ±0.02 (beyond ±15°)
Minimum indicating value
0.001°
Repeatability
0.002° (-45° to +45°); 0.005° (beyond ±45°)
Sample transmittance
>1%
Test tubes
200 mm, 100 mm, 100 mm constant-temperature tube
Interface
USB
Operation voltage
220V±22V, 50Hz or 110V±11V, 60Hz
Overall dimensions
850 x 500 x 470 mm
Gross weight
40 kg
About This Product
The polarimeter can measure dark-coloured samples with a transmittance above 1%. It comes with 200 mm and 100 mm test tubes and a 100 mm constant-temperature test tube, and data are transferred through the USB interface.
Frequently Asked Questions
Q1. How many wavelengths can be selected? From 2 up to 6 wavelengths can be selected.
Q2. How is the sample temperature controlled? By the Peltier principle, over 15-30°C with an accuracy of ±0.5°C.
