Manual Portable Colorimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11108

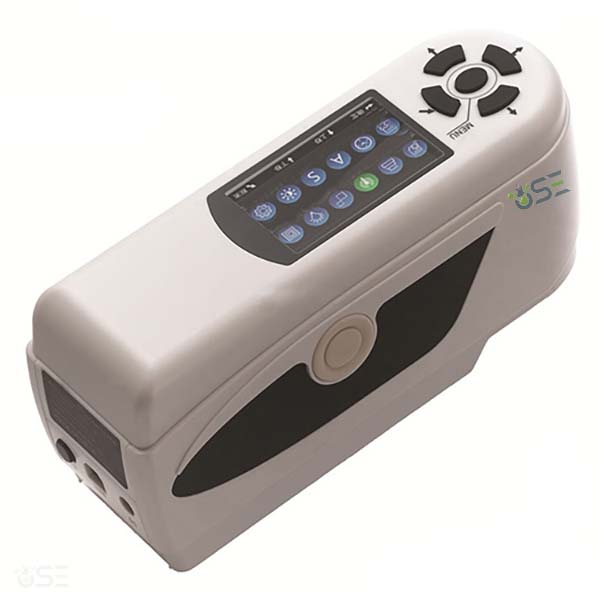

Quick Answer: The Manual Portable Colorimeter is a portable colour meter with 8/d integrating-sphere optics, a Φ8 mm measuring aperture and a 2.8 inch TFT true-colour display, storing 100 standard and 20000 test samples.
Last updated: October 2026
Key Features
- 8/d geometry with an integrating-sphere optical path
- Φ8 mm measuring aperture
- Displays whiteness, yellowness and colour fastness; ΔE*ab, L*a*b and ΔE*C*h formulas
- Storage for 100 standard samples and 20000 test samples
- Repeatability: standard deviation within ΔE*ab 0.06
- No calibration needed before each measurement
Technical Specifications
| Specification | Value |
|---|---|
| Geometry | 8/d (8° illumination, diffuse viewing) |
| Light source | LED blue light excitation |
| Detector | Silicon photoelectric diode |
| Measuring aperture | Φ8 mm |
| Observer / illuminant | 10° observer, D65 |
| Measuring range | L: 0 to 100 |
| Minimum interval between measurements | Approx. 1 s |
| Display | TFT true colour, 2.8 inch (16:9) |
| Interface | RS-232, 19200 bps |
| Operating temperature | -10 to 40°C |
| Storage temperature | -20 to 50°C |
| Humidity | 0-85% RH, no condensation |
| Weight | 500 g |
| Dimensions | 205 x 70 x 100 mm |
About This Product
The instrument has a hand-held structure, and light-spot and cross locating help position the measuring area on the sample. Standard accessories include an AC adapter, battery, operation manual, software CD, USB cable, white calibration cover and Φ8 mm measuring aperture; an extended Φ8 mm aperture, universal test components and a powder test box are listed as operation accessories.
Frequently Asked Questions
Q1. How many readings can it store?
100 standard samples and 20000 test samples.
Q2. Does it need calibrating before every measurement?
No. It does not need to be calibrated each time.
Related: Colorimeter range, Digital Portable Colorimeter, Digital Portable Photometer, Portable Colorimeter.
For a quotation on the Manual Portable Colorimeter, contact Scientific Equipments.
