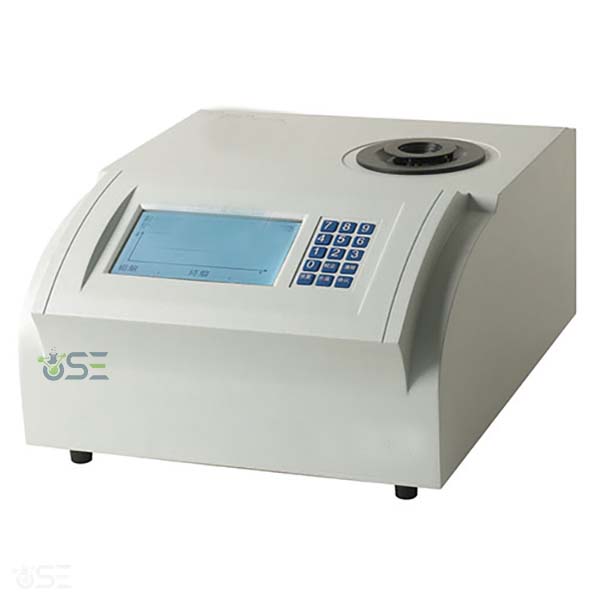

Digital Melting Point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-OLE-11129
Quick Answer: The Digital Melting Point Apparatus uses a photoelectric test and can measure three samples at the same time, calculating the average initial and final melting points automatically. A 5.6 inch colour LCD shows the melting curve directly.
Last updated: October 2026
Key Features
- Measures three samples at the same time and averages initial and final melting points automatically
- Photoelectric test
- 5.6 inch colour LCD with direct display of the melting curve
- Entry by digital keyboard; RS232/USB interface
- Linear heating rates of 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0 and 5.0°C/min
Technical Specifications
| Specification | Value |
|---|---|
| Melting-point range | Room temperature–300°C or room temperature–320°C |
| Minimum digital display | 0.1°C |
| Accuracy | ±0.4°C up to 200°C; ±0.7°C above 200°C |
| Repeatability | 0.3°C (heating rate 1.0°C/min) |
| Capillary | 1.4 mm outside diameter, 1.0 mm inside diameter, 90 mm long |
| Sample loading height | 3 mm |
| Display | 5.6 inch colour LCD |
| Interface | RS232/USB |
| Gross weight | 11 kg |
| Overall dimensions | 500 x 430 x 310 mm |
About This Product
Melting point is one of the important measures of purity, and this apparatus is used in the production of medicines, dyestuffs, perfumes and other organic crystalline substances. It works with capillaries of 1.4 mm outside diameter and 90 mm length, with a sample loading height of 3 mm.
Frequently Asked Questions
Q1. What capillaries does it use?
Capillaries of 1.4 mm outside diameter, 1.0 mm inside diameter and 90 mm length, with a sample loading height of 3 mm.
Q2. What interface does it have?
RS232/USB.
Related: Other Lab Equipments range, Visual Melting point Apparatus, Melting point Apparatus.
For a quotation on the Digital Melting Point Apparatus, contact Scientific Equipments.
