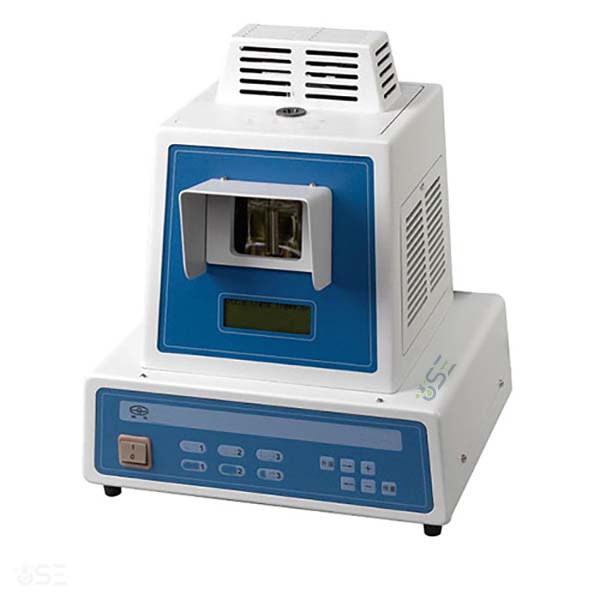

Visual Melting point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-OLE-11128
Quick Answer: The Visual Melting point Apparatus measures the melting point of organic crystalline substances from room temperature to 280°C, testing three samples at the same time. It calculates the average initial and final melting points automatically.
Last updated: October 2026
Key Features
Measures three samples at the same time
Automatically averages the initial and final melting points
Melting-point range from room temperature to 280°C
Linear heating rates of 0.5, 1.0, 1.5 and 3.0°C/min
0.1°C minimum digital display
Technical Specifications
Specification
Value
Measurement range
Room temperature–280°C
Minimum digital display
0.1°C
Linear heating rate
0.5, 1.0, 1.5, 3.0°C/min
Accuracy
0.4°C up to 200°C; 0.7°C above 200°C
Repeatability (standard deviation)
0.3°C
Gross weight
15 kg
Overall dimensions
400 x 400 x 540 mm
About This Product
This apparatus is used to measure the melting point of medicines, dyestuffs, perfumes and other organic crystalline substances as a way of determining their purity.
Frequently Asked Questions
Q1. How many samples can it test at once? Three samples at the same time. It calculates the average of their initial and final melting points automatically.
Q2. What heating rates are available? Linear heating rates of 0.5, 1.0, 1.5 and 3.0°C/min.
