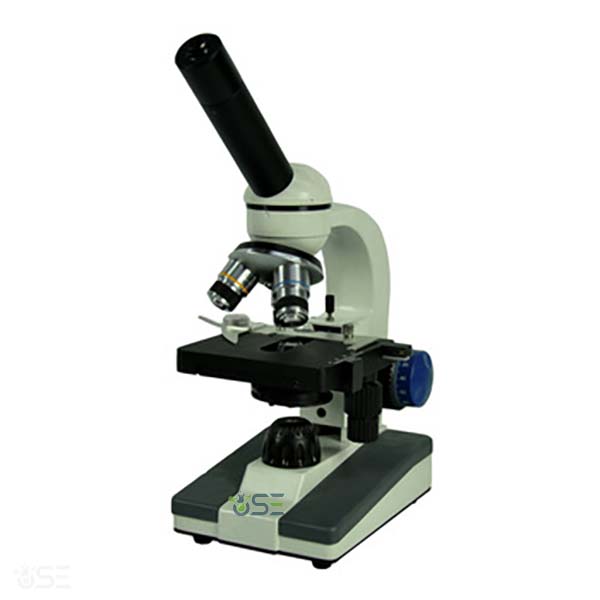

640X Student Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11057
Quick Answer: The 640X Student Microscope is a monocular microscope with a head inclined at 45° and rotatable through 360°, achromatic 4X, 10X and 40X objectives and a 95X105mm mechanical stage.
Last updated: October 2026
Key Features
Monocular head, 45° inclined, 360° rotatable
WF10X eyepiece, with WF16X as an option
Achromatic objectives 4X, 10X and 40X
Mechanical stage 95X105mm with a moving range of 50X20mm
Abbe condenser N.A. 1.25
Coaxial coarse and fine focusing adjustable mechanism: 17mm
Technical Specifications
Specification
Value
Head
Monocular, 45° inclined, 360° rotatable
Eyepiece
WF10X (optional WF16X)
Objectives
Achromatic 4X, 10X, 40X
Stage
Mechanical, 95X105mm
Moving range
50X20mm
Condenser
Abbe, N.A. 1.25
Focusing
Coaxial coarse and fine, 17mm
Lamp
LED, or LED with rechargeable batteries
About This Product
This monocular student microscope is lit by an LED lamp, which is also offered with rechargeable batteries. Its mechanical stage and Abbe condenser are combined with coaxial coarse and fine focusing.
Frequently Asked Questions
Q1. What lighting does it use? An LED lamp, or an LED lamp with rechargeable batteries.
Q2. How far does the mechanical stage move? The 95X105mm mechanical stage has a moving range of 50X20mm.
