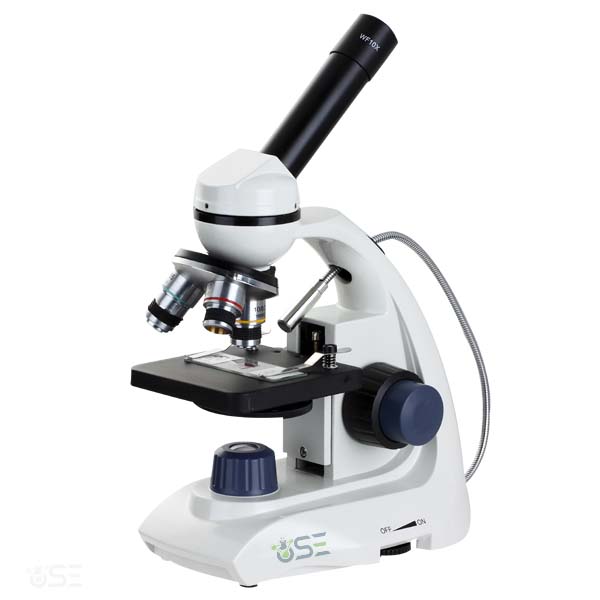

Monocular Student Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11050
Quick Answer: The Monocular Student Microscope has a monocular head inclined at 45°, a WF10X/16mm eyepiece and achromatic 4X, 10X and 40X objectives, with upper and lower LED illumination of adjustable brightness.
Last updated: October 2026
Key Features
Monocular head inclined at 45°
WF10X/16mm eyepiece; WF25X also listed
Achromatic objectives 4X, 10X and 40X
Plain stage with slide clips, 95×95mm
NA 0.65 with turntable diaphragm
Coaxial coarse and fine adjustment
Technical Specifications
Specification
Value
Head
Monocular, inclined at 45°
Eyepiece
WF10X/16mm; WF25X
Objectives
Achromatic 4X, 10X, 40X
Illumination
Upper and lower LED, adjustable brightness
Batteries
Can be equipped with 3 × 5# batteries
Stage
Plain stage with slide clips, 95×95mm
NA
0.65, with turntable diaphragm
Focusing
Coaxial coarse and fine adjustment
About This Product
This monocular student microscope has upper and lower LED illumination whose brightness can be adjusted. The illumination can be equipped with 3 × 5# batteries.
Frequently Asked Questions
Q1. Can this microscope be equipped with batteries? Yes. Its LED illumination can be equipped with 3 × 5# batteries.
Q2. Is the LED brightness adjustable? Yes. The upper and lower LED illumination has adjustable brightness.
