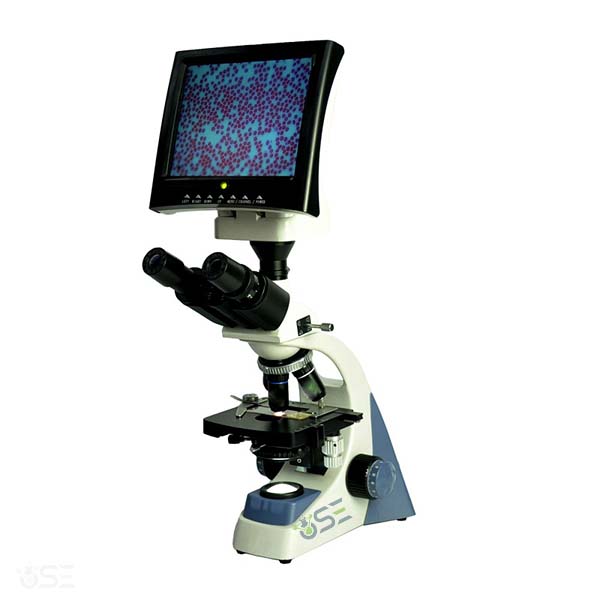

LCD Display Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11059
Quick Answer: The LCD Display Microscope combines a trinocular head, inclined at 30° and rotatable through 360°, with an LCD display and an inner CCD. It has achromatic 4X, 10X, 40X and 100X objectives.
Last updated: October 2026
Key Features
- Trinocular head, 30° inclined, 360° rotatable
- WF10X/18mm eyepiece, with WF16X as an option
- Double layers mechanical stage 125X125mm with X-Y moving range of 60X40mm
- Φ2-Φ30mm iris diaphragm, Φ32 filter and Abbe condenser N.A. 1.25
- LCD display 800X600 with highest mode 1024X768@75Hz
- 1W LED lamp, with rechargeable batteries as an option
Technical Specifications
| Specification | Value |
|---|---|
| Head | Trinocular, 30° inclined, 360° rotatable |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Eyepiece | WF10X/18mm (optional WF16X) |
| Stage | Double layers mechanical stage, 125X125mm |
| Moving range X-Y | 60X40mm |
| Iris diaphragm | Φ2-Φ30mm |
| Filter | Φ32 |
| Condenser | Abbe, N.A. 1.25 |
| Display dimension | 800X600 |
| Colours | 16,777,216 colors |
| Highest mode | 1024X768@75Hz |
| Colour system | PAL/NTSC 4.43/NTSC3.58/SECAM |
| CCD | Inner, 1/3" |
| Horizontal resolution | 700 TV line |
| Pixels | 976(H)X582(V) |
| Focusing | Coaxial coarse and fine, 14mm |
| Lamp | 1W LED (optional rechargeable batteries) |
| Gross weight | 8kg |
About This Product
This microscope pairs a trinocular head with an LCD display and an inner CCD. The display supports PAL/NTSC 4.43/NTSC3.58/SECAM colour systems, and the CCD has a horizontal resolution of 700 TV line with 976(H)X582(V) pixels. Focusing is by a coaxial coarse and fine mechanism.
Frequently Asked Questions
Q1. Which objectives are fitted?
Achromatic objectives of 4X, 10X, 40X and 100X.
Q2. Is there a battery option for the lamp?
Yes. The 1W LED lamp is listed with rechargeable batteries as an option.
Q3. What are the LCD display figures?
Display dimension 800X600, 16,777,216 colours, highest mode 1024X768@75Hz, and PAL/NTSC 4.43/NTSC3.58/SECAM colour systems.
Related: Student Microscope range, Screen Microscope, 360 Rotatable Student Microscope.
For a quotation on the LCD Display Microscope, contact Scientific Equipments.
