Digital Portable Colorimeter Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11107

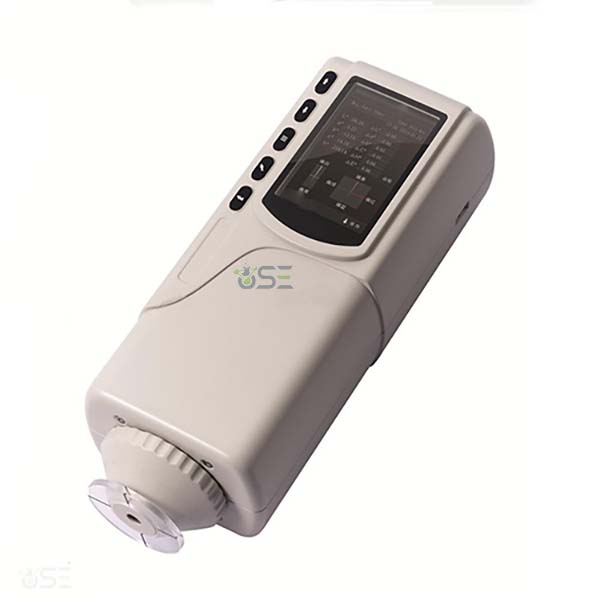

Quick Answer: The Digital Portable Colorimeter is a hand-held colour meter with 8/d integrating-sphere optics and a Φ4 mm measuring aperture that displays colour difference, whiteness, yellowness and colour fastness.
Last updated: October 2026
Key Features
- 8/d illuminating/viewing geometry with an integrating-sphere optical path
- Φ4 mm measuring aperture for small concave and convex surfaces
- Colour difference formulas ΔE*ab, L*a*b and ΔE*C*h
- No calibration needed before each measurement
- Light-spot (facula) and cross locating for positioning the measuring area
Technical Specifications
| Specification | Value |
|---|---|
| Geometry | 8/d |
| Light source | LED blue light excitation |
| Detector | Silicon photoelectric diode |
| Measuring aperture | Φ4 mm |
| Illuminant | D65 |
| Repeatability | Standard deviation within ΔE*ab 0.07 (average of 30 measurements of standard white plate) |
| Minimum interval between measurements | Approx. 1 s |
| Battery life | More than 3000 times |
| Lamp life | 3 years, more than 1.6 million times |
| Interface | USB, RS232 |
| Operating temperature | -10 to 40°C |
| Storage temperature | -20 to 50°C |
| Humidity | 0-85% RH, no condensation |
| Weight | 450 g |
| Dimensions | 205 x 67 x 80 mm |
About This Product
The colorimeter has a hand-held structure and offers a choice of colour spaces to suit the user's needs. Standard accessories are a powder adapter, Li-ion battery, operating instructions, white calibration cover, wristband, cross platform, 4 mm measuring apertures, software and USB cable, and it can be used with a miniature thermal printer.
Frequently Asked Questions
Q1. Does it need calibrating before every measurement?
No. It does not need to be calibrated each time, which simplifies operation.
Q2. What can it display besides colour difference?
Whiteness, yellowness and colour fastness.
Related: Colorimeter range, Manual Portable Colorimeter, Digital Portable Photometer, Digital Photoelectric Colorimeter.
For a quotation on the Digital Portable Colorimeter, contact Scientific Equipments.
