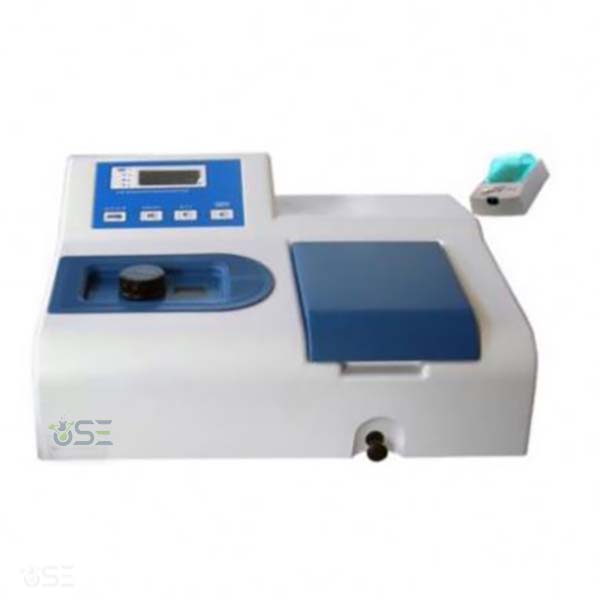

Digital Visible Spectrophotometer Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11114
Quick Answer: The Digital Visible Spectrophotometer uses a CT grating monochromator (1200/mm) over a wavelength range of 195-1020 nm, with a 4 nm spectral bandwidth and RS232C signal output.
Last updated: October 2026
Key Features
Wavelength range 195-1020 nm; spectral bandwidth 4 nm
CT grating monochromator, 1200/mm
Wavelength accuracy ±2 nm; repeatability 1 nm
Photometric accuracy ±0.5%T; repeatability 0.3%T
Tungsten lamp (6V 10W) and deuterium lamp
Dedicated printer and RS232C signal output
Technical Specifications
Specification
Value
Wavelength range
195-1020 nm
Spectral bandwidth
4 nm
Optical system
CT grating monochromator, 1200/mm
Wavelength accuracy
±2 nm
Wavelength repeatability
1 nm
Photometric range
0-199.0%T, 0-1.999A, 0-1999C
Photometric accuracy
±0.5%T
Photometric repeatability
0.3%T
Stray light
≤0.2%T at 220 nm
Stability
±0.004 A/h (500 nm, 1 h preheat)
Signal output
RS232C
About This Product
The spectrophotometer reads transmittance, absorbance and concentration over ranges of 0-199.0%T, 0-1.999A and 0-1999C, shown on an LCD. Results can be printed on the dedicated printer or sent out through the RS232C port.
Frequently Asked Questions
Q1. What light sources does it use? A 6V 10W tungsten lamp and a deuterium lamp.
Q2. Can results be printed? Yes. It has a dedicated printer as well as an RS232C signal output.
