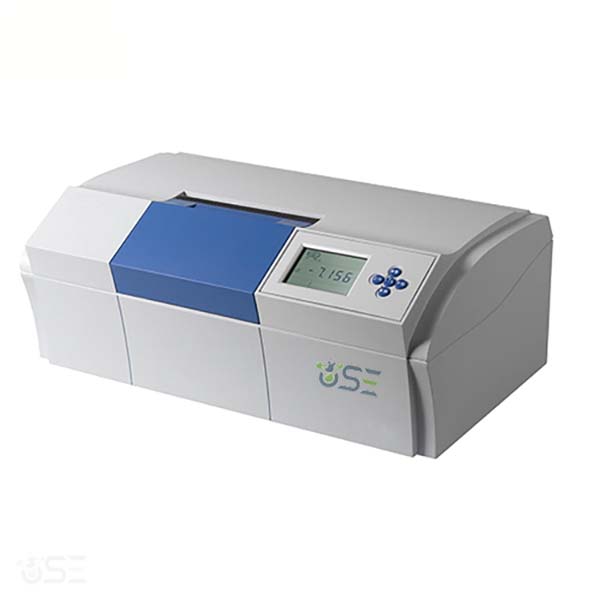

Laboratory Automatic Polarimeter A1 Manufacturer,Supplier and Exporter in India
Product Code : EL-C-11115
Quick Answer: The Laboratory Automatic Polarimeter A1 measures optical rotation over ±45° with a 589.44 nm sodium lamp, photoelectric detection and automatic servomechanism control, showing results on an LCD.
Last updated: October 2026
Key Features
Optical rotation range ±45°
Photoelectric test with automatic servomechanism control
Stores three results and calculates the average
Monochromatic sodium lamp light source, 589.44 nm
RS232 interface
Technical Specifications
Specification
Value
Measurement range
±45° (optical rotation)
Accuracy
±(0.01 + measuring value x 0.05%)°
Minimum indicating value
0.002°
Repeatability
≤0.01°
Display
LCD
Light source
Sodium lamp, 589.44 nm
Test tubes
100 mm and 200 mm, 1 each
Gross weight
36 kg
Overall dimensions
730 x 480 x 470 mm
About This Product
The polarimeter detects optical rotation photoelectrically, with a servomechanism controlling the measurement automatically. Up to three results are stored and their average is calculated, and readings are shown on the LCD.
Frequently Asked Questions
Q1. Which test tubes are included? One 100 mm and one 200 mm test tube.
Q2. What light source does it use? A monochromatic sodium lamp at 589.44 nm.
