1000X Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11072

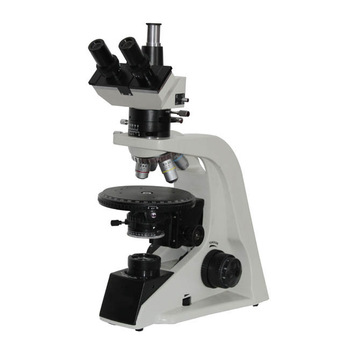

Quick Answer: The 1000X Microscope is a polarizing microscope with a sliding trinocular or binocular head, a Φ160mm revolving round stage graduated in 1° increments, a rotatable analyzer and a 6V 20W halogen lamp with Kohler illumination.
Last updated: October 2026
Key Features
- Sliding trinocular or binocular head, 45° inclined, 360° rotatable, interpupillary distance 55-75mm
- WF10X/18mm eyepieces, one with crosshair scale and 0.1mm
- 45mm strain-free achromatic objectives
- Revolving round stage Φ160mm, 360° rotatable, graduated in 1° increments, minimum resolution 6' with vernier scale; centre adjustable
- Rotatable analyzer graduated 0°-90°, sliding out of the optical path; optical compensator
- Halogen lamp 6V 20W (optional LED lamp) with Kohler illumination
Technical Specifications
| Specification | Value |
|---|---|
| Head | Sliding trinocular/binocular, 45° inclined, 360° rotatable, interpupillary distance 55-75mm |
| Eyepieces | WF10X/18mm; WF10X/18mm with crosshair scale and 0.1mm |
| Objectives | 45mm strain-free achromatic |
| Stage | Revolving round, Φ160mm, 360° rotatable, 1° graduations, minimum resolution 6' with vernier, centre adjustable |
| Condenser | Abbe, N.A. 1.25; Φ2-Φ30mm iris diaphragm, Φ32 filter |
| Focusing | Coaxial coarse and fine, 35mm, precision 0.002mm |
| Analyzer | Rotatable, graduated 0°-90°, slides out of optical path |
| Illumination | Halogen lamp 6V 20W (optional LED lamp), Kohler illumination |
| Gross weight | 13kgs |
About This Product
This polarizing microscope combines a rotatable analyzer, which slides out of the optical path, with an optical compensator and strain-free achromatic objectives. The round stage turns through 360° and is graduated in 1° increments, with a minimum resolution of 6' using the vernier scale. Focusing is coaxial coarse and fine (35mm) with a precision of 0.002mm.
Frequently Asked Questions
Q1. How is the stage graduated?
The Φ160mm revolving round stage rotates through 360° and is graduated in 1° increments, with a minimum resolution of 6' using the vernier scale. It is centre adjustable.
Related: Biological Microscope range, 1000X Polarizing Microscope, 1000X Biological Microscope.
For a quotation on the 1000X Microscope, contact Scientific Equipments.
