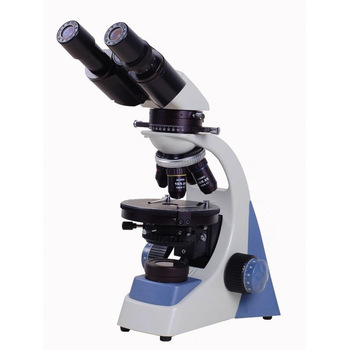

1000X Polarizing Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11073
Quick Answer: The 1000X Polarizing Microscope is a polarizing microscope with achromatic objectives of 4X, 10X, 40X and 100X, a WF10X/18mm eyepiece, a Ø160mm revolving round stage and a 1W LED lamp.
Last updated: October 2026
Key Features
- Monocular, binocular or trinocular head; 30° inclined, 360° rotatable
- WF10X/18mm eyepiece (optional WF16X)
- Achromatic objectives 4X, 10X, 40X, 100X
- Revolving round stage Ø160mm, 360° rotatable, graduated in 1° increments, minimum resolution 6'
- Rotatable analyzer graduated 0°-90°, sliding out of the optical path; polarizer on the light collector, 360° rotatable
- Optical compensator: λ slip (first class red) and 1/4λ slip
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular/binocular/trinocular, 30° inclined, 360° rotatable |
| Eyepiece | WF10X/18mm (optional WF16X) |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Stage | Revolving round, Ø160mm, 360° rotatable, 1° graduations, minimum resolution 6' |
| Analyzer | Rotatable, graduated 0°-90°, slides out of optical path |
| Polarizer | On the light collector, 360° rotatable |
| Compensator | λ slip (first class red), 1/4λ slip |
| Focusing | Coaxial coarse and fine, 14mm |
| Illumination | 1W LED lamp (optional rechargeable batteries) |
| Gross weight | 10kg |
About This Product
This polarizing microscope has a 360° rotatable polarizer on the light collector and a graduated analyzer that slides out of the optical path. Compensator slips of λ (first class red) and 1/4λ are listed, and the round stage is graduated in 1° increments. Illumination is a 1W LED lamp, with rechargeable batteries as an option.
Frequently Asked Questions
Q1. Which compensators are listed?
A λ slip (first class red) and a 1/4λ slip.
Q2. Can it run on batteries?
Rechargeable batteries are listed as an option for the 1W LED lamp.
Related: Biological Microscope range, 1000X Microscope, 1000X Biological Microscope.
For a quotation on the 1000X Polarizing Microscope, contact Scientific Equipments.
