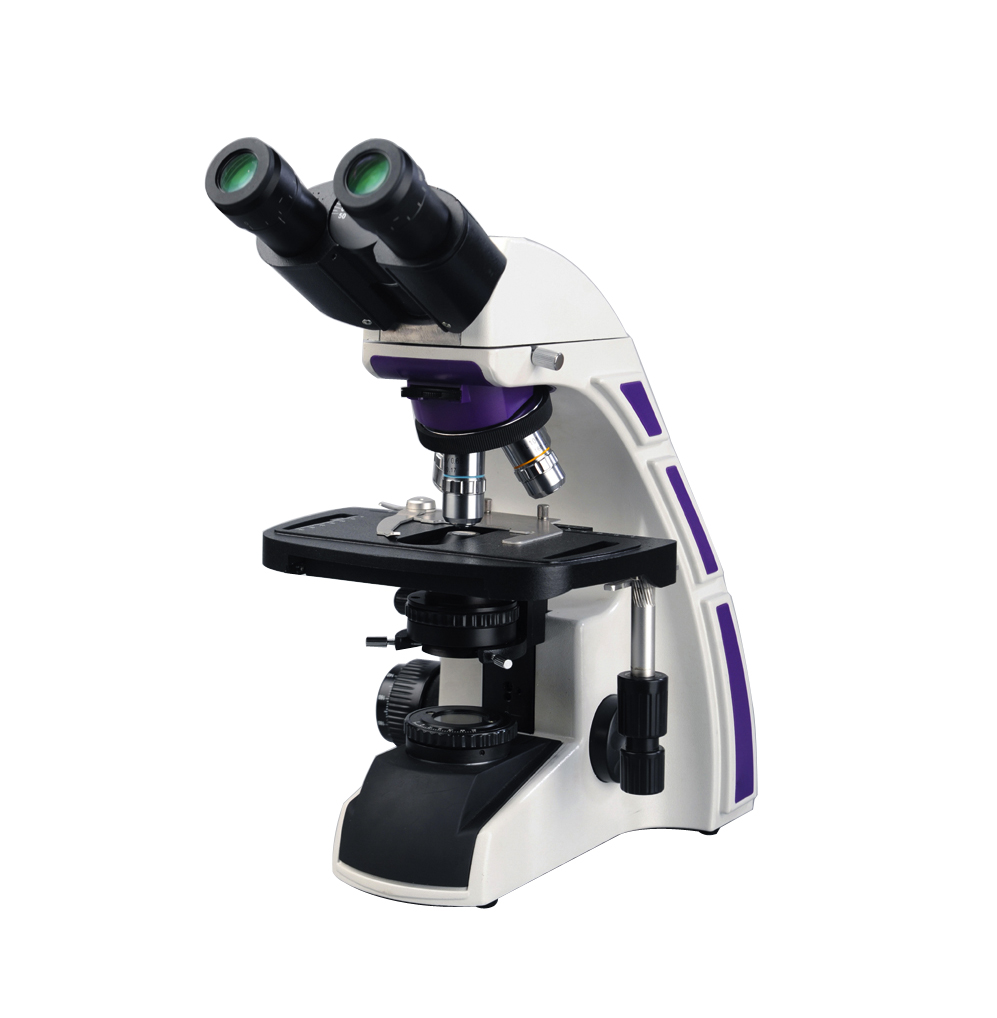

Lab Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11068
Quick Answer: The Lab Microscope is a microscope with an articulated free binocular or trinocular head, PL10X/23mm high eyepieces, plan achromatic objectives of 4X, 10X, 40X and 100X, and a 3W LED lamp with Kohler illumination.
Last updated: October 2026
Key Features
- Articulated free binocular or trinocular head, 30° inclined, interpupillary distance 50-75mm
- PL10X/23mm high eyepiece with diopter adjustment ±5; tube Φ30mm
- Plan achromatic objectives 4X, 10X, 40X, 100X on a backward quadruple nosepiece (optional quintuple)
- 220X148mm double mechanical stage with X-axis low hand position, 76X50mm, and damped double slide clamp
- 3W LED lamp with Kohler illumination system
- Abbe condenser N.A. 1.25
Technical Specifications
| Specification | Value |
|---|---|
| Head | Articulated free binocular/trinocular, 30° inclined, interpupillary distance 50-75mm |
| Eyepiece | PL10X/23mm high eyepiece, diopter adjustment ±5, tube Φ30mm |
| Objectives | Plan achromatic 4X, 10X, 40X, 100X |
| Nosepiece | Backward quadruple (optional quintuple) |
| Stage | 220X148mm double mechanical, X-axis low hand position, 76X50mm, precision 0.1mm, damped double slide clamp |
| Condenser | Abbe, N.A. 1.25 |
| Focusing | Coaxial coarse and fine, 0.002mm |
| Illumination | 3W LED lamp, Kohler illumination system |
| Gross weight | 10kg |
About This Product
This laboratory microscope has an articulated head that adjusts for interpupillary distances of 50-75mm, and its eyepieces have diopter adjustment of ±5. The plan achromatic objectives sit on a backward quadruple nosepiece, and the stage has a low hand position on the X-axis and a damped double slide clamp. Illumination is a 3W LED lamp with a Kohler illumination system.
Frequently Asked Questions
Q1. Is a quintuple nosepiece available?
The standard nosepiece is a backward quadruple type; a quintuple nosepiece is listed as an option.
Q2. What illumination does it use?
A 3W LED lamp with a Kohler illumination system.
