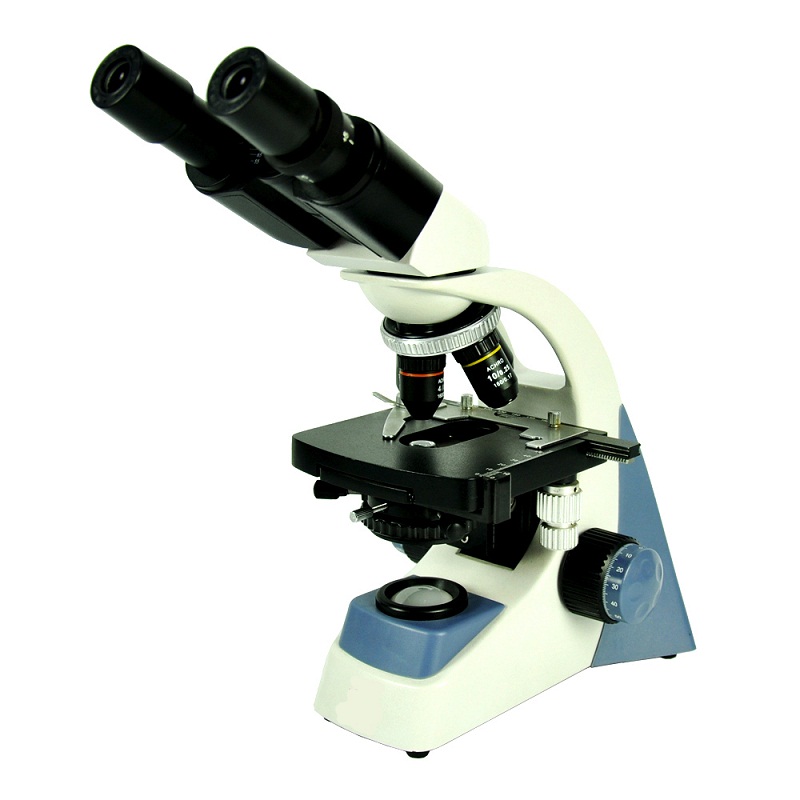

1000X Biological Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11067
Quick Answer: The 1000X Biological Microscope is a biological microscope with a WF10X/18mm eyepiece, achromatic objectives of 4X, 10X, 40X and 100X and a 1W LED lamp, with a choice of monocular, binocular, trinocular, V-type or S-type head.
Last updated: October 2026
Key Features
- Head options: monocular, binocular, trinocular, V-type or S-type; 30° inclined, 360° rotatable
- WF10X/18mm eyepiece (optional WF16X)
- Achromatic objectives 4X, 10X, 40X and 100X
- Double-layer mechanical stage 125X125mm with 60X40mm X-Y moving range
- Abbe condenser N.A. 1.25 with Φ2-Φ30mm iris diaphragm and Φ32 filter
- 1W LED lamp (optional rechargeable batteries)
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular/binocular/trinocular/V-type/S-type; 30° inclined, 360° rotatable |
| Eyepiece | WF10X/18mm (optional WF16X) |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical, 125X125mm |
| Moving range X-Y | 60X40mm |
| Condenser | Abbe, N.A. 1.25 |
| Iris diaphragm | Φ2-Φ30mm, with Φ32 filter |
| Focusing | Coaxial coarse and fine, 14mm |
| Illumination | 1W LED lamp (optional rechargeable batteries) |
| Gross weight | 10kg |
About This Product
This biological microscope pairs the WF10X eyepiece with achromatic objectives up to 100X. It has a 125X125mm double-layer mechanical stage, a coaxial coarse and fine focusing mechanism (14mm) and a 1W LED lamp, with rechargeable batteries available as an option. The gross weight is 10kg.
Frequently Asked Questions
Q1. Which objectives are fitted?
Achromatic objectives of 4X, 10X, 40X and 100X, used with a WF10X/18mm eyepiece (WF16X optional).
Related: Biological Microscope range, LED Biological Microscope, 1000X Microscope, Compound Microscope.
For a quotation on the 1000X Biological Microscope, contact Scientific Equipments.
