Ampere's Rule Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11334

Scientifc Equipment Ampere's Rule Apparatus is an educational physics laboratory apparatus designed to demonstrate the magnetic effect of electric current and the direction of magnetic field around a current-carrying conductor. It is widely used in school physics laboratories, STEM classrooms, college practical labs, and teacher-led demonstrations on electricity and magnetism.

This apparatus helps students understand Ampere's right-hand rule, also commonly explained as the right-hand thumb rule, by showing how a magnetic field forms around a straight conductor when electric current flows through it. It provides a clear practical demonstration of the relationship between current direction and magnetic field direction.

Product Description

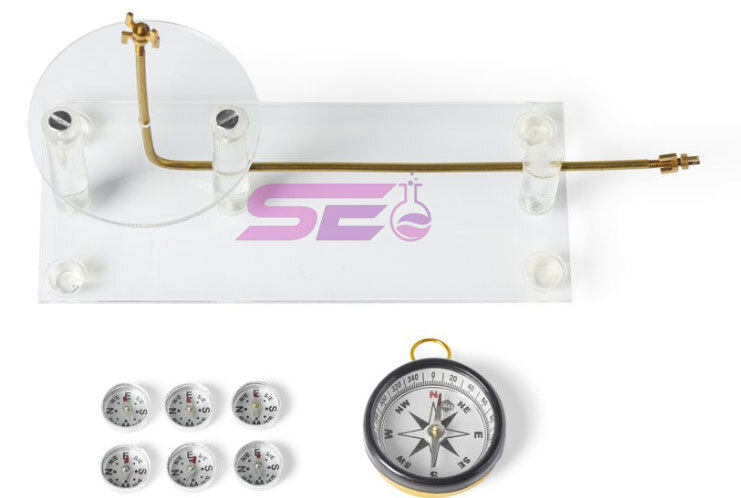

The Ampere's Rule Apparatus by Scientifc Equipment is a classroom-ready demonstration instrument used to study the magnetic field produced by an electric current. The apparatus generally includes a vertical conducting wire or rod, connection terminals, base platform, compass or magnetic needle arrangement, and suitable support parts as per supplied model configuration.

When a low-voltage electric current passes through the vertical conductor, a magnetic field is produced around the conductor. A compass needle placed near the conductor shows deflection, helping students observe the direction of the magnetic field. When the direction of current is reversed, the direction of compass deflection also changes.

The apparatus is useful for explaining electromagnetism, magnetic field around a straight conductor, current direction, compass deflection, and the practical application of Ampere's rule in physics education.

Key Features

• Brand: Scientifc Equipment
• Physics Demonstration Apparatus: Designed for teaching Ampere's rule and magnetic effect of current.
• Current-Carrying Conductor Setup: Helps demonstrate magnetic field formation around a conductor.
• Compass Deflection Observation: Allows students to observe magnetic field direction using a compass needle.
• STEM Learning Tool: Suitable for electricity and magnetism experiments.
• Classroom Suitable: Useful for teacher-led demonstrations and supervised student practicals.
• Reusable Apparatus: Suitable for repeated laboratory use under proper supervision.
• Concept-Based Learning: Supports understanding of current direction, field direction, and electromagnetism.

Product Specifications

How to Use Ampere's Rule Apparatus

1. Place the apparatus on a stable, dry, and level laboratory table.
2. Keep the setup away from strong magnets, iron objects, and electronic devices that may affect compass readings.
3. Connect the conductor terminals to a suitable low-voltage DC power supply using connecting wires.
4. Use a key or switch in the circuit to control the current flow safely.
5. Place a compass or magnetic needle near the current-carrying conductor.
6. Switch on the power supply briefly and observe the deflection of the compass needle.
7. Note the direction of current and the corresponding direction of magnetic field around the conductor.
8. Apply Ampere's right-hand rule to compare the observed field direction with the theoretical direction.
9. Reverse the current direction and observe the change in compass needle deflection.
10. Record all observations in the practical notebook or worksheet.
11. Switch off the power supply after completing the experiment.
12. Disconnect all wires carefully and store the apparatus in a dry place.

Educational Applications

• Demonstrating Ampere's rule in physics practicals
• Explaining the right-hand thumb rule
• Studying magnetic field direction around a straight current-carrying conductor
• Observing compass needle deflection due to electric current
• Showing the magnetic effect of electric current
• Understanding the relationship between current direction and magnetic field direction
• Supporting experiments in electricity and magnetism
• Using in STEM classrooms, science projects, and laboratory demonstrations

Why Choose Scientifc Equipment Ampere's Rule Apparatus?

Scientifc Equipment provides practical educational laboratory apparatus designed for classroom demonstration, student experiments, and STEM-based science learning. The Ampere's Rule Apparatus helps students observe the magnetic effect of current directly, making electromagnetism easier to understand through practical observation.

• Suitable for school and college physics laboratories
• Useful for electricity and magnetism demonstrations
• Helps students connect textbook rules with real compass deflection
• Simple apparatus for teacher-led practical explanation
• Supports hands-on STEM learning and observation-based experiments
• Suitable for institutional procurement and physics lab setup

Care and Safety Instructions

• Use the apparatus only under teacher or laboratory instructor supervision.
• Use only a suitable low-voltage DC power supply for the experiment.
• Do not connect the apparatus directly to mains electricity.
• Avoid passing excessive current through the conductor for a long duration.
• Switch off the power supply immediately after observation to prevent heating.
• Check all electrical connections before switching on the circuit.
• Keep the apparatus away from water, moisture, and corrosive chemicals.
• Store in a clean, dry, and dust-free laboratory cabinet after use.

SEO Title

Ampere's Rule Apparatus for Physics Lab – Scientifc Equipment

Meta Description

Buy Scientifc Equipment Ampere's Rule Apparatus for school physics labs, STEM classrooms, magnetic field demonstrations, right-hand rule experiments, and electromagnetism practicals.

SEO Keywords

Ampere's Rule Apparatus, Scientifc Equipment Ampere's Rule Apparatus, Physics Lab Ampere Rule Apparatus, Right Hand Thumb Rule Apparatus, Magnetic Effect of Current Apparatus, Current Carrying Conductor Demonstration, Electromagnetism Lab Equipment, School Physics Lab Apparatus, STEM Electricity and Magnetism Equipment, Compass Deflection Experiment Apparatus.

FAQ – Ampere's Rule Apparatus

1. What is Ampere's Rule Apparatus used for?

Ampere's Rule Apparatus is used to demonstrate the magnetic field produced around a current-carrying conductor and to explain the direction of magnetic field using Ampere's right-hand rule.

2. Is this apparatus suitable for school physics laboratories?

Yes, Scientifc Equipment Ampere's Rule Apparatus is suitable for school physics labs, college practical labs, STEM classrooms, and teacher-led demonstrations.

3. Which physics concept does this apparatus demonstrate?

It demonstrates the magnetic effect of electric current, magnetic field direction around a conductor, compass deflection, current direction, and Ampere's right-hand rule.

4. How does Ampere's Rule Apparatus work?

When electric current passes through the conductor, a magnetic field is produced around it. A nearby compass needle deflects, showing the direction of the magnetic field.

5. What happens when the current direction is reversed?

When the current direction is reversed, the magnetic field direction also reverses, and the compass needle deflects in the opposite direction.

6. What additional equipment is required?

A suitable low-voltage DC power supply, connecting wires, key or switch, and compass or magnetic needle may be required depending on the supplied apparatus configuration.

7. Can students use this apparatus?

Yes, students can use it under teacher or laboratory instructor supervision with proper low-voltage electrical connections and safety precautions.

8. Why should low-voltage power supply be used?

A low-voltage power supply is recommended for safe classroom experiments and to reduce the risk of overheating or electrical hazard during demonstration.

9. How should the apparatus be maintained?

Keep the apparatus clean and dry, avoid excessive current, protect the terminals and conductor from damage, and store it in a dry laboratory cabinet after use.

10. Is Ampere's Rule Apparatus useful for STEM education?

Yes, it supports STEM education by helping students observe the connection between electricity and magnetism through practical, hands-on experiments.

Conclusion

Scientifc Equipment Ampere's Rule Apparatus is a useful physics laboratory instrument for demonstrating magnetic field direction around a current-carrying conductor. It helps students understand Ampere's rule, right-hand thumb rule, compass deflection, and the magnetic effect of electric current through direct classroom observation. This apparatus is suitable for school laboratories, college practicals, STEM classrooms, science projects, and institutional physics lab setups.
