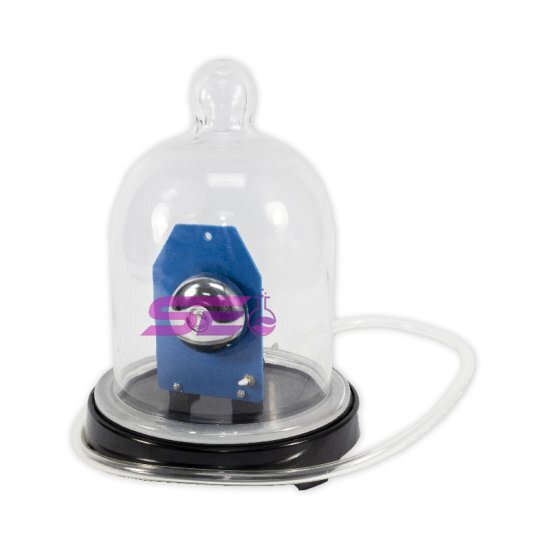

Bell Jar In Vacuum with Plate & Bell Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11830

The Bell Jar In Vacuum with Plate & Bell by Scientifc Equipment is an educational physics laboratory apparatus designed to demonstrate that sound requires a material medium for transmission. It is suitable for school physics laboratories, college science labs, STEM classrooms, sound wave demonstrations, air pressure lessons, and teacher-led practical experiments.

This apparatus helps students observe how the ringing sound of a bell becomes weaker when air is removed from inside the bell jar. The setup generally includes a transparent bell jar, vacuum plate, bell or ringer arrangement, and connection facility for a suitable vacuum pump depending on product configuration.

Product Description

Sound travels through a material medium such as air, water, or solids. In this demonstration, a bell or electric ringer is placed inside a sealed bell jar on a vacuum plate. When the bell operates in normal air, the sound can be heard clearly. As the air is gradually removed using a vacuum pump, the sound becomes weaker, helping students understand that sound cannot travel effectively through a vacuum.

The Scientifc Equipment Bell Jar In Vacuum with Plate & Bell may include a transparent bell jar, vacuum plate, sealing gasket, bell or electric ringer, vacuum outlet, electrical terminals, connecting leads, and compatible demonstration accessories depending on product configuration. It is designed for supervised educational and laboratory demonstration use only.

Key Features

• Educational vacuum and sound demonstration apparatus for physics laboratories.
• Shows that sound requires air or another material medium to travel.
• Includes bell jar, vacuum plate, and bell arrangement depending on model configuration.
• Transparent bell jar allows students to observe the bell while sound intensity changes.
• Useful for teaching sound waves, vibration, vacuum, air pressure, and wave propagation.
• Can be used with a suitable vacuum pump and low-voltage power source depending on setup.
• Ideal for school physics practicals, STEM lessons, and teacher demonstrations.
• Helps connect textbook sound theory with clear laboratory observation.
• Designed for supervised educational use only.

Product Specifications

How to Use

1. Place the vacuum plate on a stable, clean, dry, and level laboratory bench.
2. Inspect the bell jar, vacuum plate, gasket, bell, electrical leads, and vacuum outlet before use.
3. Place the bell or ringer securely on the plate inside the bell jar area.
4. Connect the bell or ringer to a suitable low-voltage power supply or battery as recommended for the model.
5. Switch on the bell briefly and allow students to hear the sound in normal air.
6. Place the bell jar carefully on the vacuum plate and ensure a proper seal with the gasket.
7. Connect the vacuum outlet to a suitable vacuum pump using compatible tubing.
8. Operate the vacuum pump slowly and observe how the sound from the bell becomes weaker as air is removed.
9. Allow air to enter the bell jar gradually and observe the sound becoming louder again.
10. Discuss how the experiment proves that sound requires a material medium for transmission.
11. After the demonstration, switch off the bell, release vacuum safely, disconnect all equipment, and store the apparatus carefully.

Safety and Handling Instructions

• Use only under teacher, laboratory instructor, or trained adult supervision.
• Use only a compatible vacuum pump and do not exceed the recommended vacuum level.
• Do not use a cracked, chipped, scratched, damaged, or weakened bell jar.
• If the bell jar is glass, handle it carefully to avoid breakage and injury.
• Use protective eyewear or a safety screen if required by laboratory procedure.
• Do not place face, eyes, or hands close to the bell jar while vacuum is being applied.
• Use only the recommended low-voltage power source for the bell or ringer.
• Do not connect the electrical bell directly to mains electricity unless it is specifically rated and supplied for that purpose.
• Keep electrical parts away from water, chemicals, and damp surfaces.
• Release the vacuum slowly before lifting or moving the bell jar.
• Do not force the bell jar off the vacuum plate while vacuum is present.
• Store the bell jar, plate, bell, tubing, and accessories in a clean, dry, and protective place after use.

Educational Applications

• Demonstrating that sound requires a material medium to travel.
• Showing reduction of sound intensity in reduced-pressure conditions.
• Teaching sound waves, vibration, and wave propagation.
• Explaining vacuum, air pressure, and atmospheric pressure concepts.
• Helping students compare sound transmission in normal air and reduced air pressure.
• Supporting physics practicals, STEM activities, and classroom demonstrations.
• Connecting sound theory with clear experimental observation.
• Encouraging prediction, observation, recording, discussion, and scientific reasoning.

Why Choose Scientifc Equipment Bell Jar In Vacuum with Plate & Bell?

The Scientifc Equipment Bell Jar In Vacuum with Plate & Bell provides a clear, visual, and memorable way to teach sound transmission. By allowing students to hear the bell become quieter as air is removed, the apparatus makes the concept of sound needing a medium easier to understand through supervised laboratory experimentation.

FAQ

1. What is Bell Jar In Vacuum with Plate & Bell used for?

It is used to demonstrate that sound requires a material medium such as air to travel and becomes weak when air is removed from the bell jar.

2. Is this apparatus suitable for school physics laboratories?

Yes, it is suitable for school physics labs, college science labs, STEM classrooms, teacher demonstrations, and supervised student observation activities.

3. Does the apparatus require a vacuum pump?

Yes, a suitable vacuum pump is generally required to remove air from the bell jar. Compatibility depends on the vacuum plate and outlet connection.

4. What does the experiment demonstrate?

The experiment demonstrates that sound waves need a material medium to travel. As air is removed from the jar, the sound from the bell becomes weaker.

5. Does the bell require electricity?

Yes, the bell or ringer usually requires a suitable low-voltage power supply or battery. Exact power requirements depend on product configuration.

6. Can students operate this apparatus independently?

No. Students should use or observe the apparatus only under teacher or laboratory instructor supervision because it may involve vacuum, glassware, and electrical connections.

7. What precautions are important while using the bell jar?

Always check the bell jar for cracks, use a compatible vacuum pump, apply vacuum slowly, avoid placing the face near the jar, and release vacuum safely before opening.

8. How should the apparatus be stored?

Store the bell jar, vacuum plate, bell, tubing, and accessories in a clean, dry, and protective place away from impact, moisture, dust, chemicals, heat, and rough handling.
