Outdoor Multifunction Compass Manufacturer,Supplier and Exporter in India
Product Code : EL-C-10789

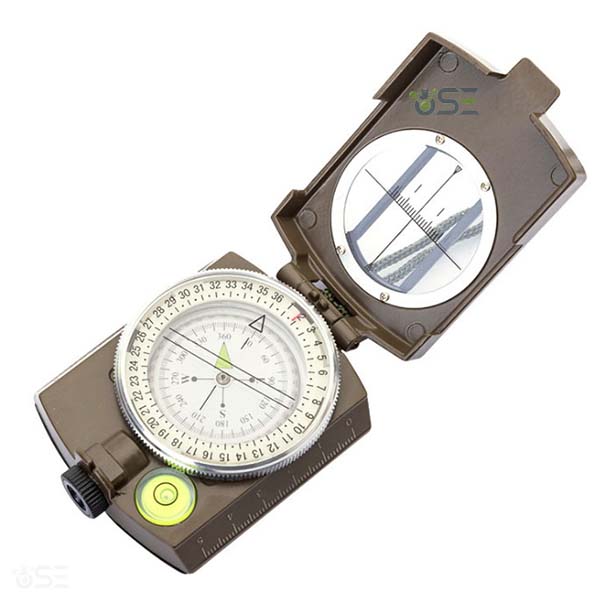

Quick Answer: The Outdoor Multifunction Compass is a liquid-filled zinc alloy compass with a double magnifier, jewelled pivot and floating luminous dial, measuring approx. 9.5 x 6.6 x 3.3 cm.
Last updated: October 2026
Key Features
Liquid-filled capsule
Zinc alloy body, approx. 9.5 x 6.6 x 3.3 cm
Double magnifier structure for easy reading
Jewelled pivot
Floating luminous dial for finding direction in the dark
Technical Specifications
Specification
Value
Type
Liquid-filled compass
Material
Zinc alloy
Size
Approx. 9.5 x 6.6 x 3.3 cm
Pivot
Jewelled
Dial
Floating, luminous
About This Product
This compass is used to find north, take the magnetic azimuth of a ground target or of a target on a map, and orient a map to the ground. For a ground target, set the index triangle to 0, tilt the reflector about 45°, put your thumb in the lifting ring, sight the target and read the bearing at the north end of the needle.
Frequently Asked Questions
Q1. How do I find north? Open the compass and align the index triangle with 0, then turn the compass until the north end of the needle lines up with 0. East, south, west and north can then be read directly.
Q2. How do I orient a map with it? Set the index triangle to 0, lay the ruler edge along a true meridian on the map, and rotate the map until the north end of the needle points to the local magnetic declination value.
