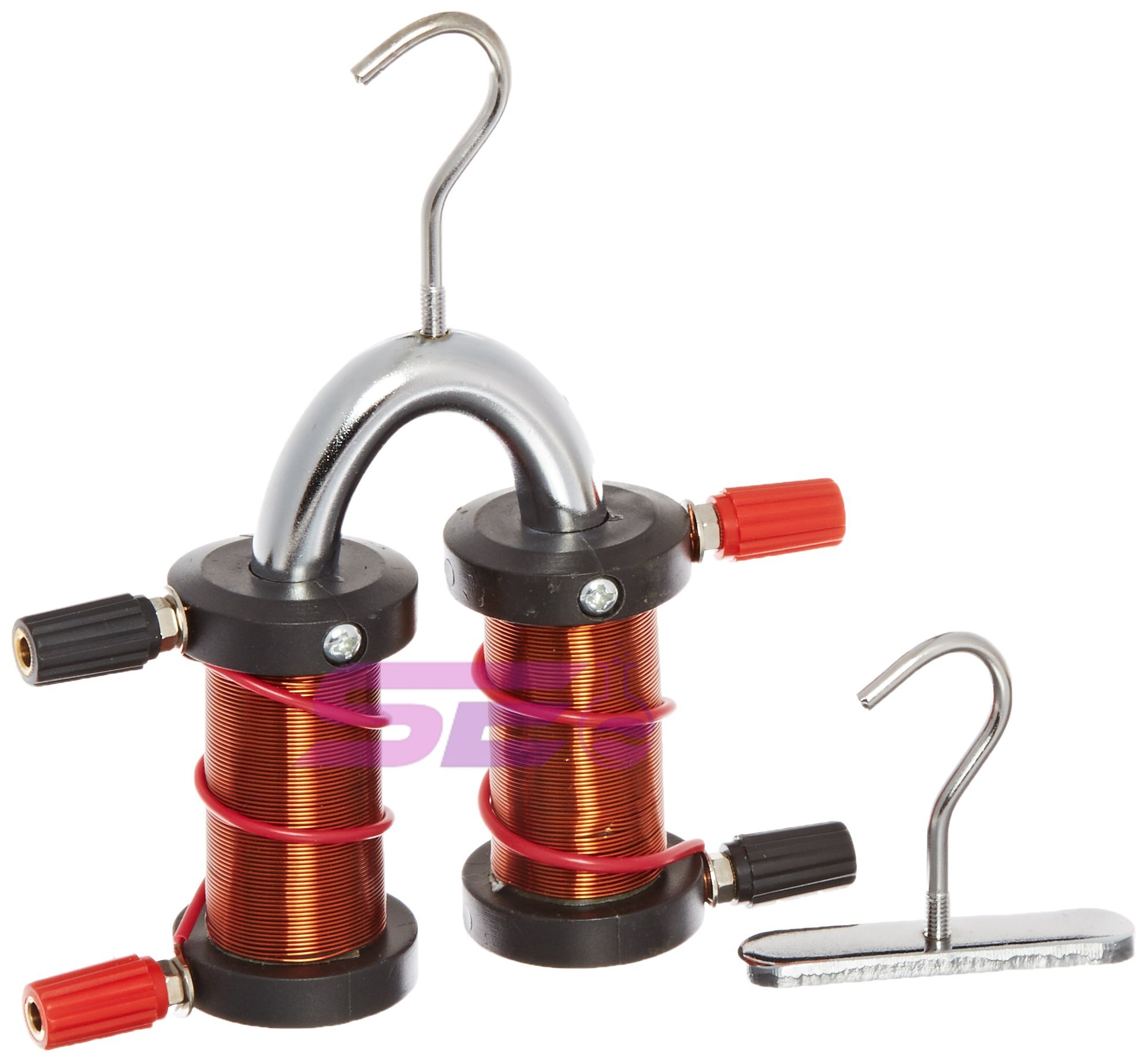

Large U-Shaped Electromagnet Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11333

Scientifc Equipment Large U-Shaped Electromagnet is an educational physics laboratory apparatus designed to demonstrate the magnetic effect of electric current, temporary magnetism, electromagnet strength, magnetic poles, and lifting action. It is widely used in school physics laboratories, STEM classrooms, college practical labs, and teacher-led demonstrations on electricity and magnetism.

This apparatus helps students understand how an electric current passing through a coil can produce a magnetic field around a soft iron core. When connected to a suitable low-voltage power supply, the U-shaped core becomes magnetized and can attract iron objects. When the current is switched off, the magnetic effect reduces, making it a practical tool for explaining temporary electromagnets.

Product Description

The Large U-Shaped Electromagnet by Scientifc Equipment is a classroom-ready demonstration instrument used to show how electrical energy can be converted into magnetic energy. It generally consists of a U-shaped soft iron core, insulated copper coil winding, electrical terminals, and a support arrangement as per model configuration.

The U-shaped design places the two magnetic poles close together, allowing students to observe strong attraction between the poles and a soft iron armature or small ferrous objects. This makes the apparatus useful for demonstrating electromagnetism, magnetic lifting force, polarity, current direction, magnetic field strength, and the difference between permanent magnets and electromagnets.

Scientifc Equipment Large U-Shaped Electromagnet is suitable for experiments involving current flow, magnetic field generation, soft iron magnetization, magnetic attraction, and practical applications of electromagnets in devices such as relays, electric bells, lifting magnets, and motors.

Key Features

• Brand: Scientifc Equipment
• Large U-Shaped Design: Provides a clear demonstration of electromagnet poles and magnetic attraction.
• Soft Iron Core: Suitable for demonstrating temporary magnetism and quick magnetization.
• Insulated Coil Winding: Helps produce a magnetic field when connected to a suitable power source.
• Educational Use: Ideal for physics labs, STEM classrooms, and electricity-magnetism lessons.
• Magnetic Lifting Demonstration: Useful for showing attraction of iron objects when current flows.
• Reusable Apparatus: Designed for repeated supervised classroom and laboratory use.
• Concept-Based Learning: Helps explain electromagnetism, current effect, magnetic poles, and temporary magnets.

Product Specifications

How to Use Large U-Shaped Electromagnet

1. Place the U-shaped electromagnet on a stable and dry laboratory table.
2. Check the coil winding, terminals, and connecting wires before starting the experiment.
3. Connect the electromagnet terminals to a suitable low-voltage DC power supply through a switch or key.
4. Keep small iron objects, paper clips, or a soft iron armature near the poles of the electromagnet.
5. Switch on the power supply and observe the attraction of iron objects toward the poles.
6. Switch off the current and observe how the magnetic effect reduces or disappears.
7. Change the current strength, if allowed by the experiment setup, to observe changes in magnetic strength.
8. Reverse the current direction, if required, to discuss polarity and magnetic field direction.
9. Record observations in the practical notebook or worksheet.
10. After the experiment, switch off the power supply and disconnect all wires carefully.
11. Allow the coil to cool before handling if it becomes warm during use.
12. Store the apparatus safely in a dry laboratory cabinet.

Educational Applications

• Demonstrating the magnetic effect of electric current
• Explaining temporary magnetism using a soft iron core
• Showing how electromagnets attract iron objects
• Studying the relationship between current and magnetic strength
• Demonstrating magnetic poles in a U-shaped electromagnet
• Comparing electromagnets with permanent magnets
• Explaining practical uses of electromagnets in electric bells, relays, motors, and lifting devices
• Supporting STEM activities, science fairs, and physics practical experiments

Why Choose Scientifc Equipment Large U-Shaped Electromagnet?

Scientifc Equipment provides practical educational science apparatus designed for classroom demonstrations, laboratory experiments, and hands-on STEM learning. The Large U-Shaped Electromagnet helps teachers explain electromagnetism through direct observation of current-induced magnetic force.

• Suitable for school and college physics laboratories
• Large design supports clear classroom demonstration
• Useful for electricity and magnetism experiments
• Helps students understand temporary magnetism and magnetic lifting force
• Supports observation-based STEM learning
• Suitable for institutional procurement and physics lab setup

Care and Safety Instructions

• Use the apparatus only under teacher or laboratory instructor supervision.
• Use only a suitable low-voltage power supply recommended for educational experiments.
• Do not connect the electromagnet directly to mains electricity.
• Do not pass excessive current through the coil, as overheating may occur.
• Switch off the power supply immediately after completing the demonstration.
• Allow the coil to cool before touching it after extended operation.
• Keep the apparatus away from water, moisture, and corrosive chemicals.
• Keep strong magnetic fields away from electronic devices, magnetic cards, and sensitive instruments.
• Store the apparatus in a clean, dry, and dust-free laboratory cabinet.

SEO Title

Large U-Shaped Electromagnet for Physics Lab – Scientifc Equipment

Meta Description

Buy Scientifc Equipment Large U-Shaped Electromagnet for school physics labs, STEM classrooms, electromagnetism demonstrations, magnetic lifting experiments, and electricity-magnetism practicals.

SEO Keywords

Large U-Shaped Electromagnet, Scientifc Equipment Electromagnet, Physics Lab Electromagnet, U Shaped Electromagnet for School Lab, Electromagnetism Demonstration Apparatus, Magnetic Effect of Current Apparatus, Temporary Magnetism Experiment, STEM Electricity and Magnetism Equipment, Large Electromagnet for Physics Practical, Magnetic Lifting Demonstration Apparatus.

FAQ – Large U-Shaped Electromagnet

1. What is a Large U-Shaped Electromagnet used for?

A Large U-Shaped Electromagnet is used to demonstrate electromagnetism, temporary magnetism, magnetic poles, magnetic attraction, lifting force, and the magnetic effect of electric current.

2. Is this product suitable for school physics laboratories?

Yes, Scientifc Equipment Large U-Shaped Electromagnet is suitable for school physics labs, college laboratories, STEM classrooms, and teacher-led demonstrations.

3. How does a U-shaped electromagnet work?

When electric current flows through the coil wound around the soft iron core, a magnetic field is produced. This magnetizes the U-shaped core and allows it to attract iron objects.

4. Why is the core U-shaped?

The U-shape brings the two magnetic poles close together, making it easier to demonstrate magnetic attraction, lifting action, and concentrated magnetic force between the poles.

5. Can students use this apparatus?

Yes, students can use it under teacher or laboratory instructor supervision. Proper low-voltage electrical connections and safety precautions should always be followed.

6. What power supply is required?

A suitable low-voltage DC power supply should be used as per the model rating and laboratory experiment requirement. It should never be connected directly to mains electricity.

7. Why does the electromagnet become weak when current is switched off?

The apparatus uses temporary magnetism. When current stops flowing through the coil, the magnetic field reduces and the soft iron core loses most of its magnetism.

8. Can the magnetic strength be changed?

Yes, magnetic strength can usually be changed by varying the current, number of coil turns, or core material, depending on the experiment setup and apparatus configuration.

9. What safety precautions are important?

Use only a suitable low-voltage power source, avoid excessive current, do not connect to mains electricity, and switch off the apparatus after use to prevent overheating.

10. Is this product useful for STEM education?

Yes, it supports STEM education by helping students observe the relationship between electricity and magnetism through practical, hands-on experiments.

Conclusion

Scientifc Equipment Large U-Shaped Electromagnet is a valuable educational apparatus for teaching electromagnetism, temporary magnetism, magnetic attraction, and current-induced magnetic fields. Its large U-shaped design makes magnetic pole interaction and lifting force easy to demonstrate, making it suitable for school laboratories, college physics practicals, STEM classrooms, science projects, and institutional lab setups.
