Binocular Stereo Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11078

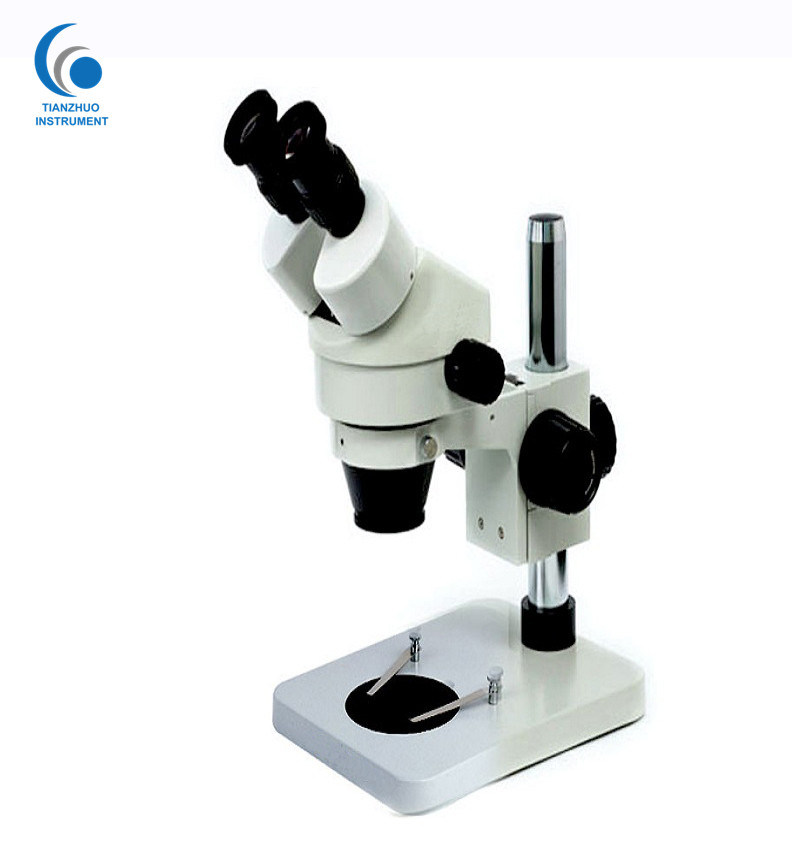

Quick Answer: The Binocular Stereo Microscope has a binocular articulated free head, inclined at 45° and rotatable through 360°, that can be locked in any position. It uses a 0.7X-4.5X objective and a 12/15W halogen lamp.
Last updated: October 2026
Key Features
- Interpupillary distance 54-76mm with ±5 diopter adjustment
- WF10X/22mm eyepiece; WF15X/16mm, WF20X/12mm, WF25X/9mm and WF30X/8mm also listed
- Objective 0.7X-4.5X, with optional 0.5X, 1.5X and 2.0X auxiliary objectives
- 12/15W halogen lamp, with a 5V/3W LED lamp as an option
- Pole arm; net weight 4kg
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular articulated free head, 45° inclined, 360° rotatable |
| Interpupillary distance | 54-76mm |
| Diopter adjustment | ±5 diopters |
| Eyepiece | WF10X/22mm (WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm) |
| Objective | 0.7X-4.5X |
| Optional auxiliary objectives | 0.5X, 1.5X, 2.0X |
| Arm | Pole |
| Lamp | 12/15W halogen (optional 5V/3W LED) |
| Net weight | 4kg |
About This Product
This binocular stereo microscope is built on a pole arm, with an articulated free head that can be locked in whatever position is wanted. Further eyepieces up to WF30X/8mm are listed, and auxiliary objectives are offered as options alongside the main objective. Lighting is a halogen lamp, with an LED lamp offered as an option.
Frequently Asked Questions
Q1. Can the head be fixed at a chosen angle?
Yes. The binocular articulated free head is inclined at 45°, rotates through 360° and can be locked in any position desired.
Q2. Which eyepieces are listed for this microscope?
The WF10X/22mm eyepiece is listed, together with WF15X/16mm, WF20X/12mm, WF25X/9mm and WF30X/8mm.
Q3. What lamp does it use?
It has a 12/15W halogen lamp. A 5V/3W LED lamp is available as an option.
Related: Biological Microscope range, LED Stereo Microscope, 40X Stereo Microscope, Zoom Stereo Microscope Universal Stand.
For a quotation on the Binocular Stereo Microscope, contact Scientific Equipments.
