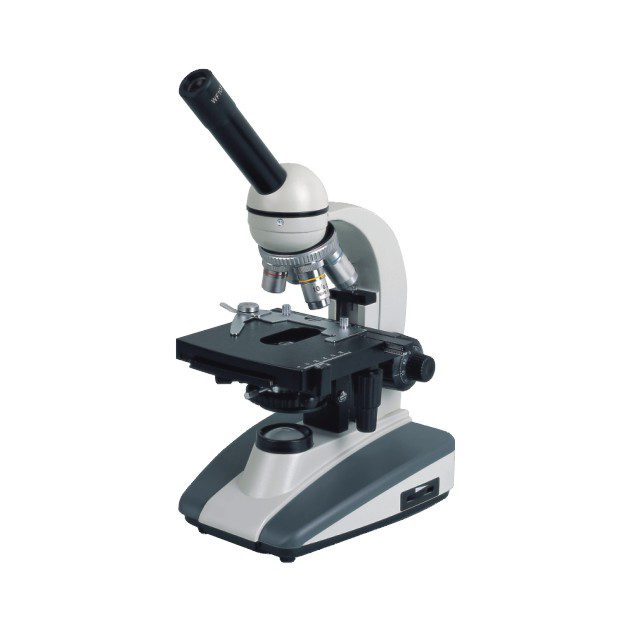

LED Biological Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11066
Quick Answer: The LED Biological Microscope is a biological microscope lit by a 1W LED lamp, with achromatic objectives of 4X, 10X, 40X and 100X and a monocular, binocular, trinocular, V-type or S-type head inclined at 30°.
Last updated: October 2026
Key Features
- 1W LED lamp (optional 6V 20W halogen lamp or rechargeable batteries)
- Head options: monocular, binocular, trinocular, V-type or S-type; 30° inclined, 360° rotatable
- WF10X/18mm eyepiece (optional WF16X)
- Achromatic objectives 4X, 10X, 40X and 100X
- Double-layer mechanical stage 130X130mm with 60X30mm X-Y moving range
- Abbe condenser N.A. 1.25 with Φ2-Φ30mm iris diaphragm and Φ32 filter
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular/binocular/trinocular/V-type/S-type; 30° inclined, 360° rotatable |
| Eyepiece | WF10X/18mm (optional WF16X) |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical, 130X130mm |
| Moving range X-Y | 60X30mm |
| Condenser | Abbe, N.A. 1.25 |
| Iris diaphragm | Φ2-Φ30mm, with Φ32 filter |
| Focusing | Coaxial coarse and fine, 20mm, precision 0.01mm |
| Illumination | 1W LED lamp (optional halogen lamp 6V 20W, rechargeable batteries) |
About This Product
This biological microscope uses a 1W LED lamp as standard, with a 6V 20W halogen lamp or rechargeable batteries listed as options. Focusing is by a coaxial coarse and fine mechanism (20mm) with a precision of 0.01mm, and the double-layer mechanical stage measures 130X130mm.
Frequently Asked Questions
Q1. What lighting options are listed?
The standard lamp is a 1W LED. A 6V 20W halogen lamp and rechargeable batteries are listed as options.
Q2. Which head types are available?
Monocular, binocular, trinocular, V-type and S-type heads, inclined at 30° and rotatable through 360°.
Related: Biological Microscope range, 1000X Biological Microscope, Compound Microscope, Educational Microscope.
For a quotation on the LED Biological Microscope, contact Scientific Equipments.
