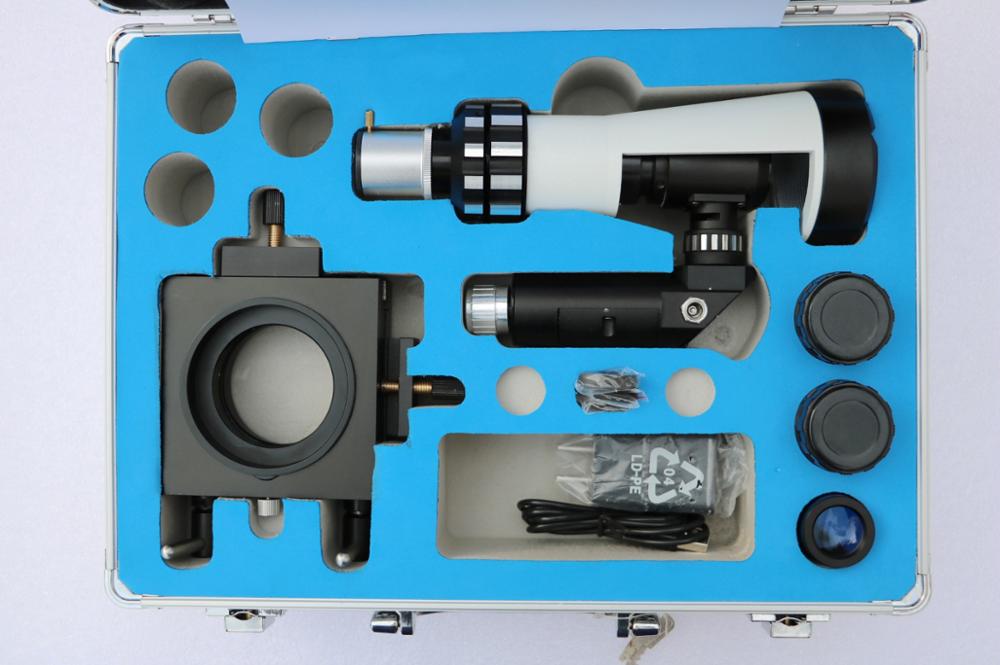

Mini Portable Metallurgical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11069
Quick Answer: The Mini Portable Metallurgical Microscope is a monocular metallurgical microscope with a WF10X/18mm eyepiece, LWD plan objectives of 10X and 40X, and built-in rechargeable LED coaxial illumination with adjustable brightness.
Last updated: October 2026
Key Features
Monocular head with WF10X/18mm eyepiece
LWD plan objectives: PLL 10X/0.25 (WD 8.9mm) and PLL 40X/0.65 (WD 3.7mm)
Mechanical tube length 160mm
Coaxial coarse/fine focus: coarse range 23mm, fine range 1.5mm
Coaxial illumination with built-in rechargeable LED, brightness adjustable
Technical Specifications
Specification
Value
Head
Monocular
Eyepiece
WF10X/18mm
Objectives
LWD plan PLL 10X/0.25 (WD 8.9mm), PLL 40X/0.65 (WD 3.7mm)
Mechanical tube length
160mm
Focusing
Coaxial coarse/fine; coarse range 23mm, fine range 1.5mm
This mini metallurgical microscope uses LWD plan objectives with working distances of 8.9mm at 10X and 3.7mm at 40X. Its coaxial illumination comes from a built-in rechargeable LED with adjustable brightness, and focusing is by a coaxial coarse and fine system with a 23mm coarse range and 1.5mm fine range.
Frequently Asked Questions
Q1. What are the working distances of the objectives? The PLL 10X/0.25 objective has a working distance of 8.9mm and the PLL 40X/0.65 objective 3.7mm.
