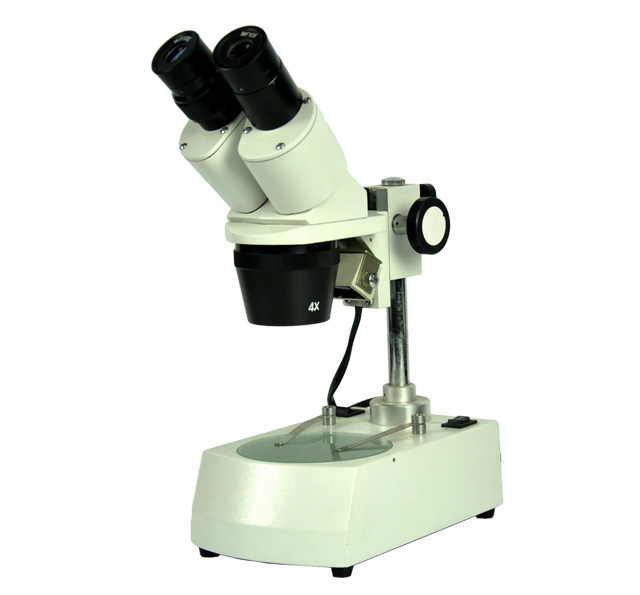

LED Stereo Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11076
Quick Answer: The LED Stereo Microscope is a binocular stereo microscope with WF10X eyepieces, objectives grouped as any two from 1X, 2X, 3X or 4X, and top and bottom lamps that adjust separately.
Last updated: October 2026
Key Features
- Binocular articulated free head, 45° inclined, interpupillary distance 55-75mm, diopter on the left
- WF10X eyepiece (optional WF15X, WF20X)
- Objectives: any two grouped from 1X, 2X, 3X or 4X
- Working distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm
- Rack and pinion coarse focusing with slip clutch and tension adjustment
- Top and bottom 6V20W halogen or 1W LED lamps, adjustable separately
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular articulated free, 45° inclined, interpupillary distance 55-75mm, diopter on the left |
| Eyepiece | WF10X (optional WF15X, WF20X) |
| Objectives | Any two grouped from 1X, 2X, 3X, 4X |
| Working distance | 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Focusing | Rack and pinion coarse, slip clutch, tension adjustment |
| Stage | Φ95mm frosted glass stage plate |
| Illumination | Top and bottom 6V20W halogen or 1W LED, adjustable separately |
| Stand | Pole/arm |
| Net weight | 2.4kg |
About This Product
This stereo microscope uses grouped objectives, any two chosen from 1X, 2X, 3X or 4X, with WF10X eyepieces. Its top and bottom lamps, either 6V20W halogen or 1W LED, can be adjusted separately, and focusing is by rack and pinion with a slip clutch and tension adjustment. The stage has a Φ95mm frosted glass plate.
Frequently Asked Questions
Q1. What working distances are listed?
1X-55mm, 2X-81mm, 3X-61mm and 4X-57mm.
Q2. Can the top and bottom lights be set separately?
Yes. The top and bottom lamps, 6V20W halogen or 1W LED, are adjustable separately.
Related: Biological Microscope range, 40X Stereo Microscope, Zoom Stereo Microscope Universal Stand, Binocular Stereo Microscope.
For a quotation on the LED Stereo Microscope, contact Scientific Equipments.
