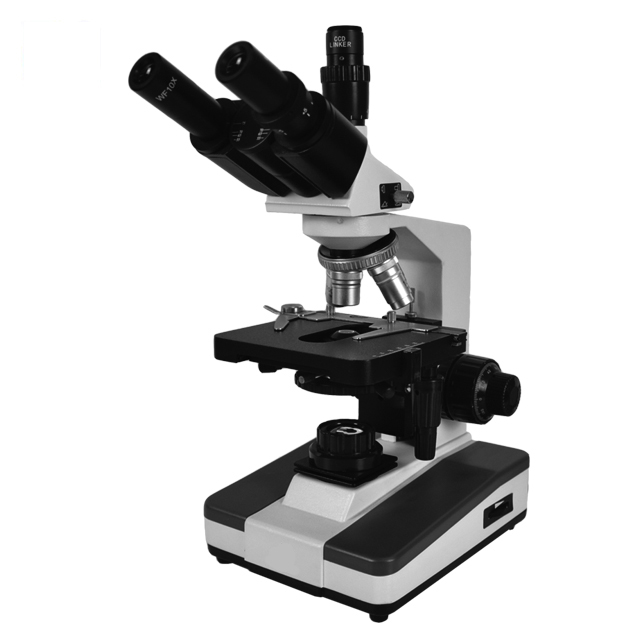

Compound Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11062
Quick Answer: The Compound Microscope is a biological microscope with achromatic objectives of 4X, 10X, 40X and 100X, a WF10X/18mm eyepiece (optional WF16X/13mm), and a monocular, binocular, trinocular, S-type or V-type head inclined at 30° and rotatable through 360°.
Last updated: October 2026
Key Features
- Head options: Monocular, binocular, trinocular, S-type or V-type; 30° inclined, 360° rotatable
- WF10X/18mm eyepiece (optional WF16X/13mm)
- Achromatic objectives 4X, 10X, 40X and 100X
- Double-layer mechanical stage 130X140mm with 70X50mm X-Y moving range
- Abbe condenser N.A. 1.25 with Φ2-Φ30mm iris diaphragm and Φ32 filter
- Halogen lamp 6V 20W (optional LED lamp)
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, binocular, trinocular, S-type or V-type; 30° inclined, 360° rotatable |
| Eyepiece | WF10X/18mm (optional WF16X/13mm) |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical, 130X140mm |
| Moving range X-Y | 70X50mm |
| Condenser | Abbe, N.A. 1.25 |
| Iris diaphragm | Φ2-Φ30mm, with Φ32 filter |
| Illumination | Halogen lamp 6V 20W (optional LED lamp) |
| Focusing | Coaxial coarse and fine, 20mm, precision 0.002mm |
| Gross weight | 14kg |
About This Product
This compound microscope pairs achromatic objectives from 4X to 100X with a WF10X/18mm eyepiece, with WF16X/13mm as an option. Focusing is by a coaxial coarse and fine mechanism (20mm) with a precision of 0.002mm, and the double-layer mechanical stage measures 130X140mm. Illumination is a 6V 20W halogen lamp, with an LED lamp as an option, and the gross weight is 14kg.
Frequently Asked Questions
Q1. Which head types are available?
Monocular, binocular, trinocular, S-type and V-type heads are listed, inclined at 30° and rotatable through 360°.
Q2. Can it use LED lighting?
Yes. A 6V 20W halogen lamp is listed as standard and an LED lamp is available as an option.
Related: Biological Microscope range, Optical Microscope, Educational Microscope, Lab Microscope.
For a quotation on the Compound Microscope, contact Scientific Equipments.
