Semicircular Refraction Cell Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11482

Scientifc Equipment Semicircular Refraction Cell is an educational optics laboratory apparatus designed for demonstrating refraction, critical angle, total internal reflection, refractive index, ray tracing, and light behaviour through liquid or transparent media. It is suitable for school science laboratories, college physics labs, STEM classrooms, optics practicals, and teacher-led demonstrations.

This refraction cell helps students observe how light bends when it passes from air into a liquid medium and from liquid back into air. Its semicircular design makes it useful for studying refraction at a flat surface while reducing unwanted bending at the curved surface when the light ray is directed through the centre.

Product Description

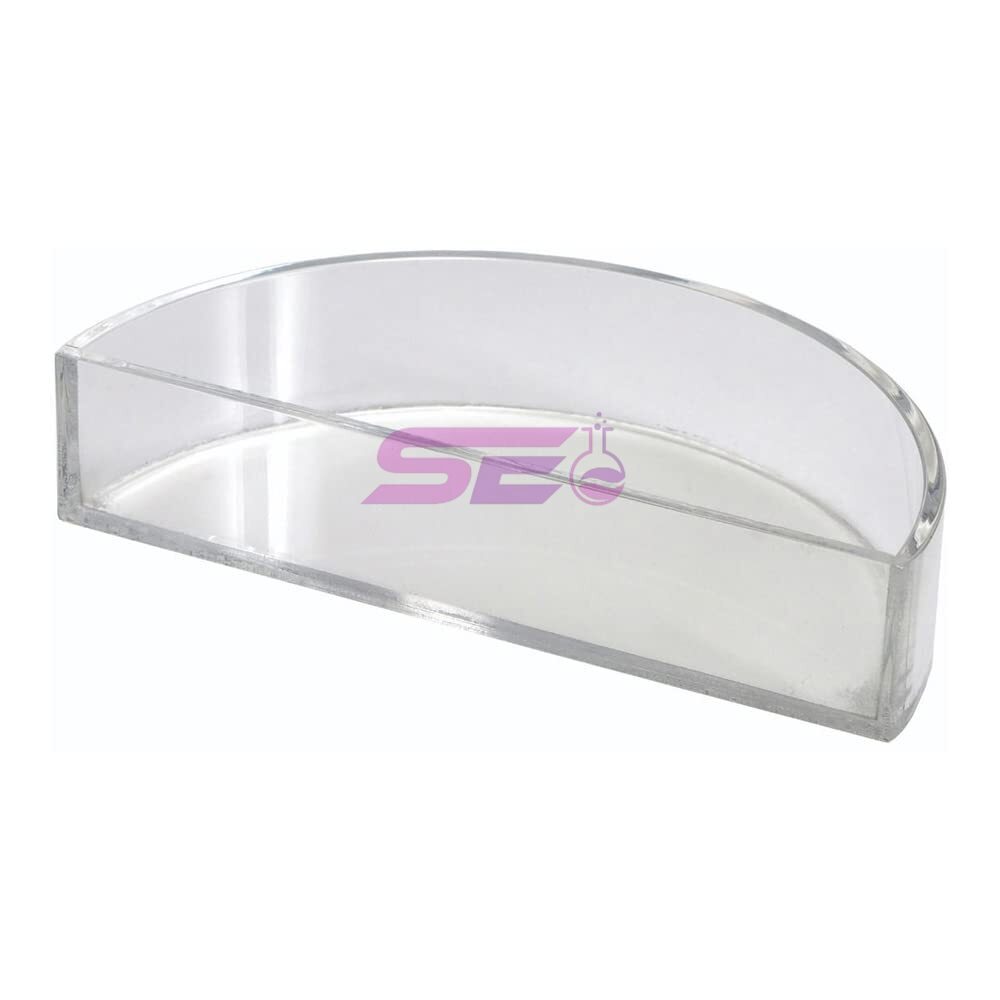

The Semicircular Refraction Cell by Scientifc Equipment is a practical ray optics teaching aid used to study refraction through liquids such as water or other suitable transparent fluids. The cell generally has a semicircular transparent body with a flat face and curved wall, allowing students to observe and trace the path of light rays clearly.

During experiments, the cell is filled with a suitable transparent liquid and placed on a ray optics board, Hartl optical disc, graph sheet, or optical bench setup. A narrow beam of light is directed through the cell to observe incident rays, refracted rays, emergent rays, critical angle, and total internal reflection under suitable conditions.

Scientifc Equipment Semicircular Refraction Cell is useful for teaching Snell’s law basics, refractive index comparison, optical density, critical angle, total internal reflection, and STEM-based optics learning.

Key Features

• Brand: Scientifc Equipment
• Semicircular Design: Useful for refraction experiments with reduced deviation at the curved surface.
• Liquid Refraction Study: Allows observation of light bending through water or suitable transparent liquids.
• Critical Angle Demonstration: Helps explain the point at which total internal reflection begins.
• Ray Tracing Support: Helps students trace incident, refracted, reflected, and emergent rays.
• Compatible with Optical Disc: Suitable for use with Hartl optical disc, ray box, light source, and protractor.
• Reusable Educational Apparatus: Suitable for repeated supervised classroom and laboratory use.
• STEM Learning Tool: Connects textbook refraction theory with real optical observation.

Product Specifications

How to Use Semicircular Refraction Cell

1. Place the Semicircular Refraction Cell on a clean, dry, and stable laboratory table.
2. Check that the cell is clean, transparent, and free from cracks or leakage.
3. Fill the cell with clean water or another suitable transparent liquid as instructed by the teacher.
4. Place the cell on a Hartl optical disc, graph sheet, or optical board.
5. Set up a ray box or suitable narrow beam light source.
6. Direct the light ray through the curved surface toward the centre of the semicircle to reduce unwanted refraction at entry.
7. Observe how the ray bends at the flat surface when it passes from liquid to air or air to liquid.
8. Change the angle of incidence and observe changes in the refracted ray.
9. Increase the angle gradually to observe the critical angle and total internal reflection where applicable.
10. Use a protractor or graduated optical disc to measure angles of incidence and refraction.
11. Record ray paths, angle readings, observations, and conclusions in the practical notebook.
12. After use, empty the liquid, clean the cell gently, dry it properly, and store it safely.

Educational Applications

• Demonstrating refraction of light through liquid media
• Studying angle of incidence and angle of refraction
• Observing critical angle and total internal reflection
• Understanding refractive index and optical density
• Preparing accurate ray diagrams for optics practicals
• Comparing light behaviour in air and liquid media
• Using with Hartl optical disc for direct angle measurement
• Supporting STEM projects and classroom optics experiments
• Helping students connect Snell’s law concepts with practical observation

Why Choose Scientifc Equipment Semicircular Refraction Cell?

Scientifc Equipment provides practical educational science apparatus for schools, colleges, laboratories, and STEM learning environments. The Semicircular Refraction Cell helps students understand refraction, critical angle, and total internal reflection through clear, hands-on optical experiments.

• Suitable for school and college physics laboratories
• Useful for refraction, refractive index, critical angle, and total internal reflection experiments
• Semicircular design supports clear ray path observation
• Compatible with ray boxes, Hartl optical discs, graph sheets, and protractors
• Supports observation-based and measurement-based STEM learning
• Reusable apparatus suitable for repeated supervised practical work
• Suitable for institutional procurement and science lab setup

E-E-A-T Product Trust Notes

• Educational Experience: Designed for repeated classroom and laboratory use in optics, refraction, and total internal reflection experiments.
• Practical Expertise: Supports standard physics concepts such as angle of incidence, angle of refraction, critical angle, refractive index, and ray tracing.
• Authoritative Lab Use: Suitable for school, college, STEM, physics, and optics laboratory practicals.
• Trustworthy Learning: Encourages supervised, observation-based experiments with clear visual and measurable outcomes.

Care and Safety Instructions

• Use the Semicircular Refraction Cell only under teacher or laboratory instructor supervision.
• Do not use the cell if it is cracked, leaking, chipped, or damaged.
• Use only suitable transparent liquids recommended for classroom experiments.
• Do not use hot liquids, strong acids, strong solvents, or corrosive chemicals inside the cell.
• Do not look directly at the Sun or strong light through the cell or any optical component.
• Handle the cell carefully to avoid scratches, cracks, or breakage.
• Empty, rinse, and dry the cell properly after use.
• Keep the cell away from dust, moisture, excessive heat, and rough handling.
• Clean the transparent surfaces with a soft cloth only.
• Store the apparatus in a protective box or laboratory cabinet after use.

SEO Title

Semicircular Refraction Cell for School Physics Optics Lab – Scientifc Equipment

Meta Description

Buy Scientifc Equipment Semicircular Refraction Cell for school physics labs, STEM classrooms, optics practicals, refraction experiments, critical angle study, total internal reflection, refractive index learning, and ray tracing.

SEO Keywords

Semicircular Refraction Cell, Scientifc Equipment Semicircular Refraction Cell, School Lab Refraction Cell, Physics Lab Refraction Apparatus, Liquid Refraction Cell, Critical Angle Apparatus, Total Internal Reflection Cell, Ray Tracing Apparatus, STEM Optics Equipment, Educational Optics Cell.

FAQ – Semicircular Refraction Cell

1. What is a Semicircular Refraction Cell used for?

A Semicircular Refraction Cell is used to demonstrate refraction, critical angle, total internal reflection, refractive index, optical density, and ray tracing in optics experiments.

2. Is this apparatus suitable for school laboratories?

Yes, Scientifc Equipment Semicircular Refraction Cell is suitable for school science labs, college physics labs, STEM classrooms, optics practicals, and supervised student experiments.

3. Why is the cell semicircular?

The semicircular shape allows light to enter through the curved surface toward the centre with minimum deviation, making refraction at the flat surface easier to study.

4. Which liquid can be used in the cell?

Clean water is commonly used. Other suitable transparent liquids may be used only under teacher or laboratory instructor guidance.

5. Which physics concepts can be taught using this cell?

It can be used to teach refraction, angle of incidence, angle of refraction, critical angle, total internal reflection, refractive index, optical density, and ray diagrams.

6. Can it be used with a Hartl Optical Disc?

Yes, it can be used with a Hartl Optical Disc to measure angles directly during refraction and total internal reflection experiments.

7. Does the Semicircular Refraction Cell require electricity?

The cell itself does not require electricity. A ray box or light source used with the cell may require batteries or electrical power.

8. Can students use the apparatus directly?

Students can use it under teacher or laboratory instructor supervision after learning correct filling, handling, alignment, and optical safety methods.

9. Can this apparatus demonstrate total internal reflection?

Yes, when the angle of incidence is increased beyond the critical angle, the cell can help demonstrate total internal reflection under suitable conditions.

10. What accessories are useful with this apparatus?

Useful accessories include a ray box, light source, Hartl optical disc, graph sheet, protractor, screen, optical bench, pins, and practical worksheet.

11. What safety precautions should be followed?

Avoid damaged cells, do not use corrosive liquids, handle the apparatus carefully, avoid strong direct light, and use the cell only under supervision.

12. How should the Semicircular Refraction Cell be maintained?

Empty and dry the cell after use, clean it with a soft cloth, avoid scratches and strong chemicals, and store it safely in a protective box or cabinet.

13. Is this product useful for STEM education?

Yes, it supports STEM education by helping students observe, measure, compare, and understand refraction, critical angle, total internal reflection, and refractive index through hands-on experiments.

Conclusion

Scientifc Equipment Semicircular Refraction Cell is a valuable educational optics apparatus for teaching refraction, critical angle, total internal reflection, refractive index, ray tracing, and optical density. Its semicircular transparent design, liquid-based demonstration capability, and compatibility with ray boxes and optical discs make it suitable for school laboratories, college physics labs, STEM classrooms, optics practicals, science projects, and institutional science lab setups.
