Hall Effect Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11508

Scientifc Equipment Hall Effect Apparatus is an educational physics laboratory apparatus designed to demonstrate the Hall Effect, magnetic field interaction, charge carrier behaviour, Hall voltage, semiconductor properties, and current flow in conducting or semiconducting materials. It is suitable for school science laboratories, college physics labs, electronics labs, engineering laboratories, STEM classrooms, and teacher-led demonstrations.

This apparatus helps students understand how a voltage is developed across a current-carrying material when it is placed in a magnetic field perpendicular to the direction of current. It is widely used for studying Hall coefficient, carrier concentration, carrier type, mobility, magnetic field measurement, and semiconductor physics principles.

Product Description

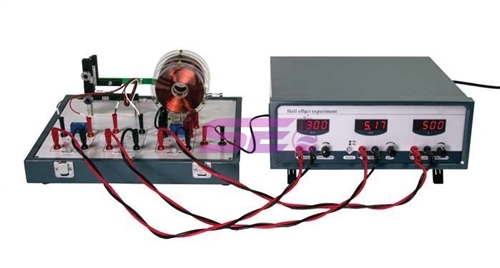

The Hall Effect Apparatus by Scientifc Equipment is a practical laboratory teaching setup used to study the behaviour of charge carriers in a magnetic field. The apparatus generally consists of a Hall probe or semiconductor sample, constant current source, electromagnet or permanent magnet arrangement, digital meter or microvoltmeter, power supply, connecting leads, sample holder, and accessories as per supplied model configuration.

When current passes through the Hall sample and a magnetic field is applied perpendicular to the current direction, moving charge carriers experience a magnetic force. This force separates positive and negative charges on opposite sides of the sample, producing a measurable transverse voltage known as Hall voltage.

Scientifc Equipment Hall Effect Apparatus is useful for teaching Hall voltage, Hall coefficient, semiconductor type, carrier concentration, magnetic field strength, Lorentz force, electron and hole conduction, and STEM-based practical physics learning.

Key Features

• Brand: Scientifc Equipment
• Educational Semiconductor Apparatus: Designed for demonstrating Hall Effect and charge carrier behaviour.
• Hall Voltage Measurement: Helps students observe voltage generated across a sample in a magnetic field.
• Magnetic Field Study: Useful for understanding interaction between current and magnetic field.
• Carrier Type Identification: Helps identify whether charge carriers are electrons or holes in a sample.
• College and Engineering Lab Suitable: Ideal for physics, electronics, and semiconductor practicals.
• Measurement-Based Learning: Supports calculation of Hall coefficient, carrier concentration, and mobility.
• Reusable Laboratory Apparatus: Suitable for repeated supervised laboratory use.

Product Specifications

How to Use Hall Effect Apparatus

1. Place the Hall Effect Apparatus on a clean, dry, stable, and level laboratory table.
2. Check the Hall probe, sample holder, power supply, meters, magnets, and connecting leads before use.
3. Insert or fix the Hall sample properly in the sample holder as per the supplied apparatus design.
4. Connect the sample to the constant current source using the correct terminals.
5. Connect the Hall voltage terminals to a suitable microvoltmeter or digital meter.
6. Place the sample between the poles of the magnet or electromagnet so that the magnetic field is perpendicular to the current direction.
7. Switch on the current supply and set the required current value as instructed by the teacher.
8. Apply the magnetic field and observe the Hall voltage reading.
9. Reverse the magnetic field or current direction if required and observe the change in Hall voltage polarity.
10. Record current, magnetic field, Hall voltage, sample thickness, and other required readings.
11. Use the readings to calculate Hall coefficient, carrier concentration, or carrier type as per the practical method.
12. Switch off the power supply after use and disconnect all leads carefully.
13. Store the Hall probe, sample, meters, and accessories safely in the laboratory cabinet.

Educational Applications

• Demonstrating Hall Effect in conductors and semiconductors
• Measuring Hall voltage across a sample
• Calculating Hall coefficient
• Determining carrier concentration in a semiconductor
• Identifying carrier type as electron or hole conduction
• Studying magnetic field effect on moving charges
• Explaining Lorentz force in practical form
• Understanding semiconductor physics and electronic material properties
• Supporting engineering physics, electronics, and STEM laboratory experiments

Why Choose Scientifc Equipment Hall Effect Apparatus?

Scientifc Equipment provides practical educational science apparatus for schools, colleges, universities, electronics labs, and STEM learning environments. The Hall Effect Apparatus helps students understand semiconductor behaviour, magnetic field interaction, and carrier transport through accurate, measurable, and hands-on experimentation.

• Suitable for college, university, and advanced school physics laboratories
• Useful for semiconductor physics, electronics, and electromagnetism practicals
• Supports Hall voltage and Hall coefficient measurement
• Helps students identify carrier type and carrier concentration
• Compatible with common laboratory meters, power supplies, and magnetic field accessories
• Reusable apparatus suitable for repeated supervised practical work
• Suitable for institutional procurement and science lab setup

E-E-A-T Product Trust Notes

• Educational Experience: Designed for repeated classroom and laboratory use in semiconductor physics and electromagnetism experiments.
• Practical Expertise: Supports standard physics concepts such as Hall Effect, Hall coefficient, carrier concentration, magnetic force, and semiconductor behaviour.
• Authoritative Lab Use: Suitable for schools, colleges, universities, engineering institutes, STEM labs, physics labs, and electronics laboratories.
• Trustworthy Learning: Encourages supervised, measurement-based experiments with clear observation, calculation, and analysis outcomes.

Care and Safety Instructions

• Use the Hall Effect Apparatus only under teacher or laboratory instructor supervision.
• Use only the recommended regulated DC power supply or constant current source.
• Do not connect the apparatus directly to mains electricity.
• Do not exceed the rated current of the Hall sample or probe.
• Switch off the power before changing connections or adjusting the sample.
• Keep electrical terminals, meters, and wiring dry during use.
• Handle the Hall probe and semiconductor sample carefully to avoid breakage or damage.
• Keep magnets away from magnetic cards, electronic storage devices, and sensitive instruments.
• Do not short-circuit output terminals or meter terminals.
• Store the apparatus in a clean, dry, and dust-free laboratory cabinet after use.

SEO Title

Hall Effect Apparatus for College Physics and Semiconductor Lab – Scientifc Equipment

Meta Description

Buy Scientifc Equipment Hall Effect Apparatus for college physics labs, semiconductor experiments, Hall voltage measurement, Hall coefficient calculation, carrier concentration study, magnetic field experiments, and STEM laboratory learning.

SEO Keywords

Hall Effect Apparatus, Scientifc Equipment Hall Effect Apparatus, Physics Lab Hall Effect Apparatus, Semiconductor Physics Apparatus, Hall Voltage Measurement Apparatus, Hall Coefficient Experiment, Carrier Concentration Apparatus, Magnetic Field Experiment Kit, Electronics Lab Equipment, STEM Physics Equipment.

FAQ – Hall Effect Apparatus

1. What is Hall Effect Apparatus used for?

Hall Effect Apparatus is used to demonstrate Hall Effect, measure Hall voltage, calculate Hall coefficient, determine carrier concentration, and study semiconductor behaviour in a magnetic field.

2. Is this apparatus suitable for college and engineering laboratories?

Yes, Scientifc Equipment Hall Effect Apparatus is suitable for college physics labs, electronics labs, engineering institutes, university laboratories, STEM labs, and supervised advanced school demonstrations.

3. What is the Hall Effect?

The Hall Effect is the production of a transverse voltage across a current-carrying material when it is placed in a magnetic field perpendicular to the direction of current.

4. What is Hall voltage?

Hall voltage is the voltage developed across the width of a conductor or semiconductor due to the separation of charge carriers in a magnetic field.

5. Can this apparatus identify carrier type?

Yes, by observing the polarity of Hall voltage, students can determine whether the majority charge carriers are electrons or holes.

6. Can Hall coefficient be calculated using this apparatus?

Yes, Hall coefficient can be calculated using Hall voltage, current, magnetic field, and sample thickness values as per the experiment formula.

7. Does the Hall Effect Apparatus require electricity?

Yes, the apparatus generally requires a regulated DC power supply or constant current source to pass current through the sample.

8. What accessories are useful with Hall Effect Apparatus?

Useful accessories include an electromagnet, gauss meter, microvoltmeter, ammeter, voltmeter, regulated power supply, connecting wires, and laboratory worksheet.

9. Can students use the apparatus directly?

Students can use the apparatus under teacher or laboratory instructor supervision after learning correct wiring, current setting, magnetic field arrangement, and safety precautions.

10. Which subjects use Hall Effect Apparatus?

It is used in physics, electronics, electrical engineering, semiconductor physics, material science, electromagnetism, and STEM education.

11. What safety precautions should be followed?

Use only recommended voltage and current, avoid short circuits, keep wiring dry, switch off power before changing connections, and handle the Hall probe carefully.

12. How should Hall Effect Apparatus be maintained?

Keep it clean and dry, protect the Hall probe and sample from damage, check wires and terminals regularly, avoid excessive current, and store all components safely after use.

13. Is this product useful for STEM education?

Yes, it supports STEM education by helping students observe, measure, calculate, and understand charge carrier behaviour, magnetic field interaction, and semiconductor properties through practical experimentation.

Conclusion

Scientifc Equipment Hall Effect Apparatus is a valuable educational laboratory apparatus for teaching Hall Effect, Hall voltage, Hall coefficient, charge carrier type, carrier concentration, magnetic field interaction, and semiconductor physics. Its measurement-based design, practical demonstration value, and advanced educational relevance make it suitable for college physics labs, electronics labs, engineering institutes, STEM classrooms, research training, and institutional science lab setups.
