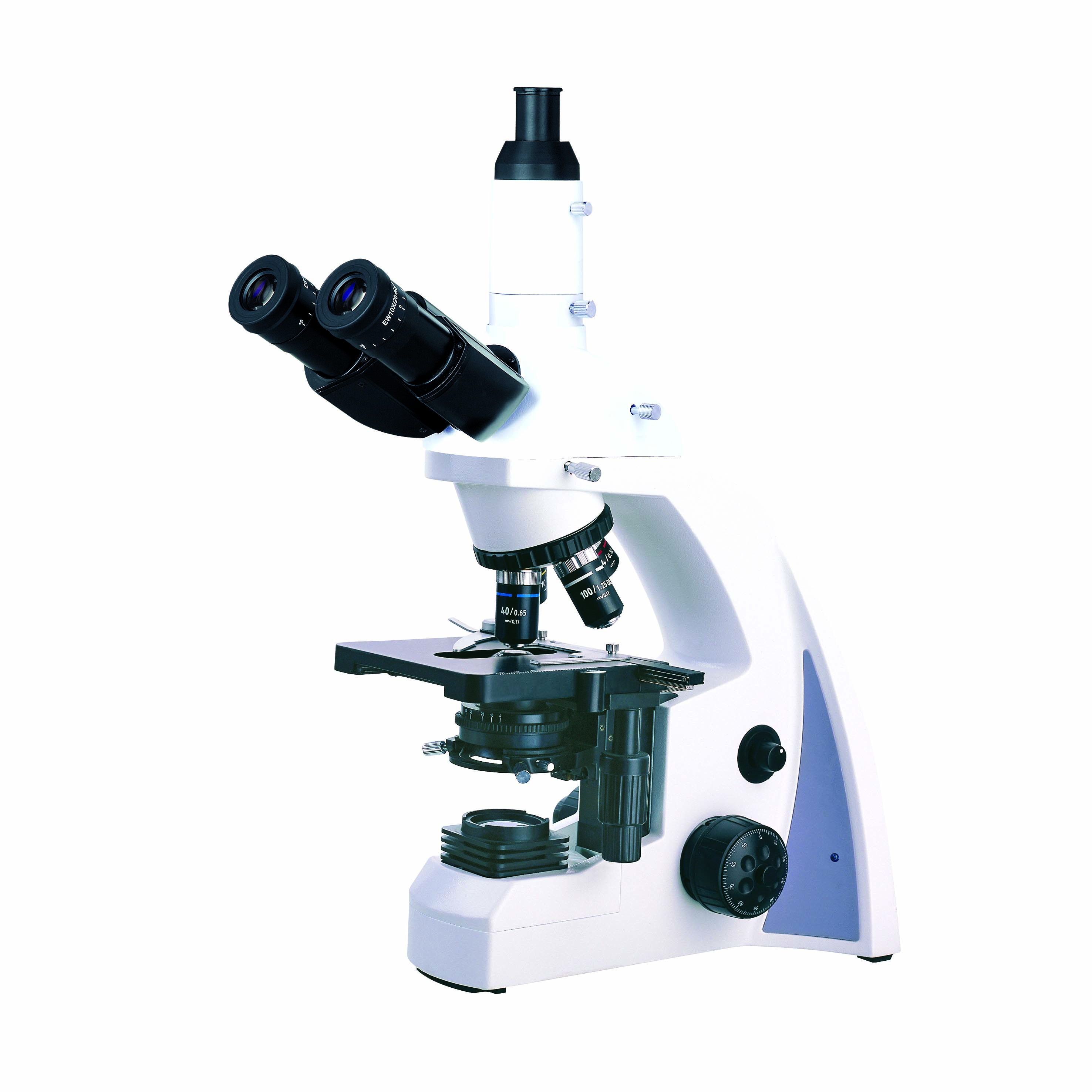

Infinity Optical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11063
Quick Answer: The Infinity Optical Microscope is a biological microscope with an infinity optical system, a Siedentopf binocular or trinocular head inclined at 30°, and infinity semi-plan or plan achromatic objectives of 4X, 10X, 40X and 100X.
Last updated: October 2026
Key Features
- Infinity optical system
- Siedentopf binocular or trinocular head, 30° inclined, interpupillary 48-75mm
- WF 10X/18 eyepiece; EW10X/20 extra wide field eyepiece with diopter adjustment
- Infinity semi-plan or plan achromatic objectives 4X, 10X, 40X, 100X
- Double-layer mechanical stage 140mmX140mm, moving range 75mmX50mm
- S-LED or 6V/20W halogen illumination, brightness adjustable
Technical Specifications
| Specification | Value |
|---|---|
| Optical system | Infinity |
| Head | Siedentopf binocular/trinocular, 30° inclined, interpupillary 48-75mm |
| Eyepieces | WF 10X/18; EW10X/20 with diopter adjustment |
| Objectives | Infinity semi-plan or plan achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical, 140mmX140mm, moving range 75mmX50mm |
| Condenser | Sliding-in, centrable, NA 1.25 |
| Focusing | Coaxial coarse and fine; coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm, fine division 0.002mm |
| Illumination | S-LED or 6V/20W halogen lamp, brightness adjustable |
About This Product
This microscope uses an infinity optical system with a Siedentopf viewing head that adjusts for interpupillary distances of 48-75mm. Focusing is coaxial coarse and fine: the coarse stroke is 37.7mm per rotation and the fine stroke 0.2mm per rotation, with a fine division of 0.002mm over a 20mm moving range. The sliding-in condenser can be centred and has an NA of 1.25.
Frequently Asked Questions
Q1. Which eyepieces are listed?
A WF 10X/18 wide field eyepiece and an EW10X/20 extra wide field eyepiece with diopter adjustment.
Q2. What illumination options are there?
S-LED illumination or a 6V/20W halogen lamp, both with adjustable brightness.
