Educational Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-BM-11065

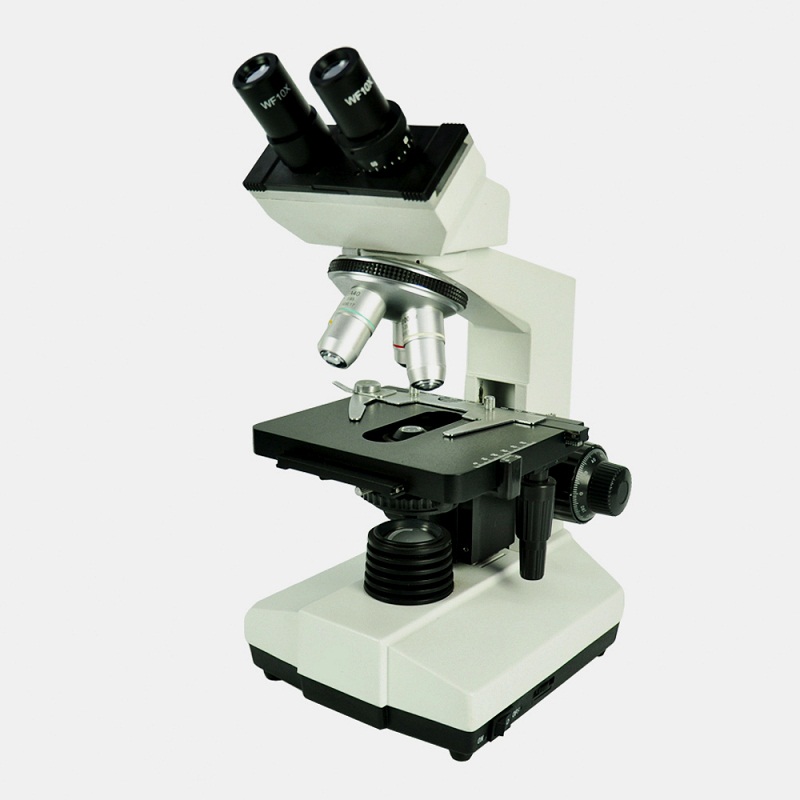

Quick Answer: The Educational Microscope is a biological microscope with achromatic objectives of 4X, 10X, 40X and 100X, a WF10X/18mm eyepiece (optional WF16X), and a monocular, binocular or trinocular head inclined at 45° and rotatable through 360°.
Last updated: October 2026
Key Features
- Head options: Monocular, binocular or trinocular; 45° inclined, 360° rotatable
- WF10X/18mm eyepiece (optional WF16X)
- Achromatic objectives 4X, 10X, 40X and 100X
- Double-layer mechanical stage 140X155mm with 70X50mm X-Y moving range
- Abbe condenser N.A. 1.25 with Φ2-Φ30mm iris diaphragm and Φ32 filter
- Halogen lamp 6V 20W (optional LED lamp)
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, binocular or trinocular; 45° inclined, 360° rotatable |
| Eyepiece | WF10X/18mm (optional WF16X) |
| Objectives | Achromatic 4X, 10X, 40X, 100X |
| Stage | Double-layer mechanical, 140X155mm |
| Moving range X-Y | 70X50mm |
| Condenser | Abbe, N.A. 1.25 |
| Iris diaphragm | Φ2-Φ30mm, with Φ32 filter |
| Illumination | Halogen lamp 6V 20W (optional LED lamp) |
| Focusing | Coaxial coarse and fine, 25mm, precision 0.002mm |
| Gross weight | 8kg |
About This Product
This educational microscope pairs achromatic objectives from 4X to 100X with a WF10X/18mm eyepiece, with WF16X as an option. Focusing is by a coaxial coarse and fine mechanism (25mm) with a precision of 0.002mm, and the double-layer mechanical stage measures 140X155mm. Illumination is a 6V 20W halogen lamp, with an LED lamp as an option, and the gross weight is 8kg.
Frequently Asked Questions
Q1. Which head types are available?
Monocular, binocular and trinocular heads are listed, inclined at 45° and rotatable through 360°.
Q2. Can it use LED lighting?
Yes. A 6V 20W halogen lamp is listed as standard and an LED lamp is available as an option.
Related: Biological Microscope range, Optical Microscope, Compound Microscope, Lab Microscope.
For a quotation on the Educational Microscope, contact Scientific Equipments.
